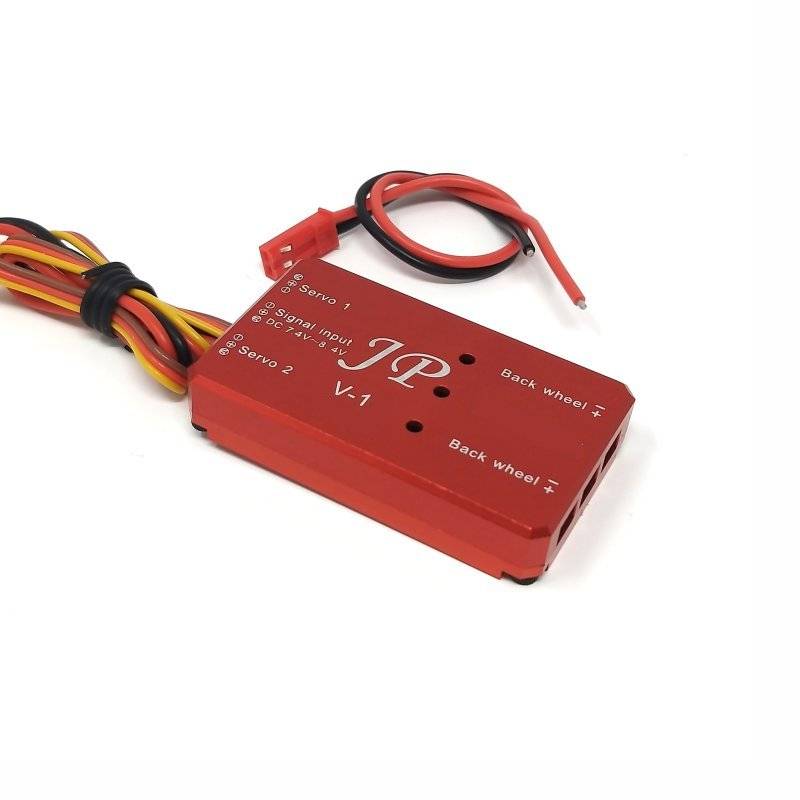

JP Hobby Bicycle Controller Retract Box ER-200 V1 (HV)
ER-200 retracts version - Version 2 closes the doors when the gear is down while version 1 keep the doors open. This electronic switch is used to control the sequence of 2 electric retracts from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts. It will work with both sizes of the JP Hobby retracts and other retracts brands.
DATA SHEET
| Serial | JP Hobby ER-200 (30kg) |
| Sizes: | 52 x 30 x 10 mm |
| Weight (gr): | 22 gr |
| Connection: | JR / Graupner / Futaba |
MORE INFO
JP Hobby Bicycle Sequencer Retract Box ER-200 V1 (HV)
This electronic switch is used to control the sequence of 2 electric retracts from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts. It will work with both sizes of the JP Hobby retracts and other retracts brands.
This version equiped with a 2s plug is for use with the ER-200 retracts from JP Hobby.

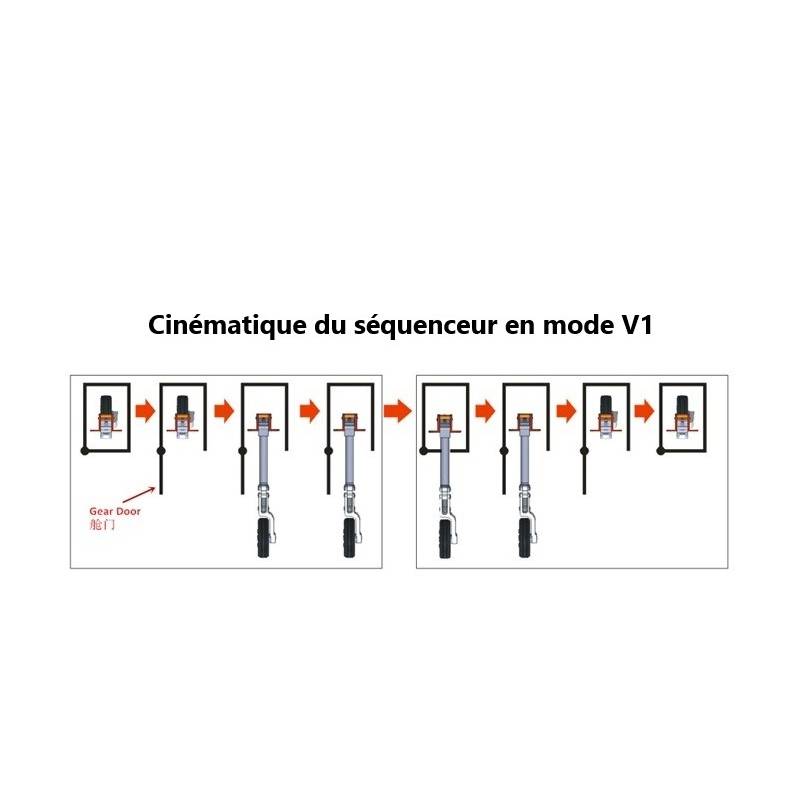

<strong>Warning: Be care of using this sequencer for a 2 retracts landing gear only</strong><br style="box-sizing: border-box;"><br style="box-sizing: border-box;"><strong>Note : Version 2 closes the doors when the gear is down while version 1 keep the doors open.</strong>
<strong>WARNING: Servos which controlling the gear doors must imperatively be H.V. (High Voltage) type</strong>

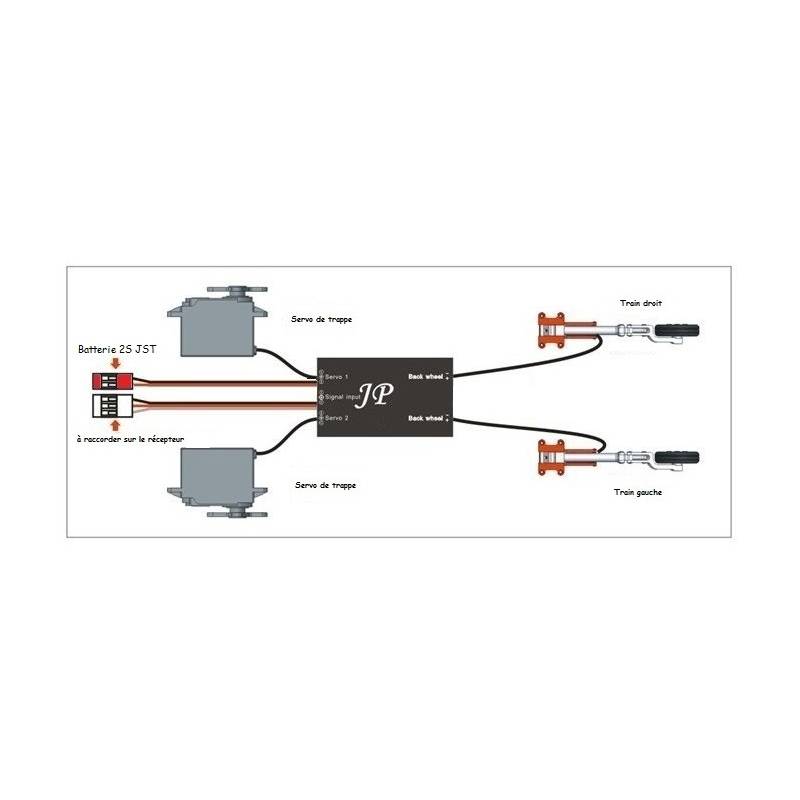

Connections
- Connect the electric retracts mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism to the "front wheel" plug
- Connect the doors servos to the "Servo 1" and "Servo 2" plugs
- Connect the "signal input" wire and plug to your receiver "gear" channel
- Plug a 2s battery
Specifications
- Input voltage: 7.4 to 8.4V (2s)
- Size: 52 x 30 x 10 mm
- Weight: 22 gr
