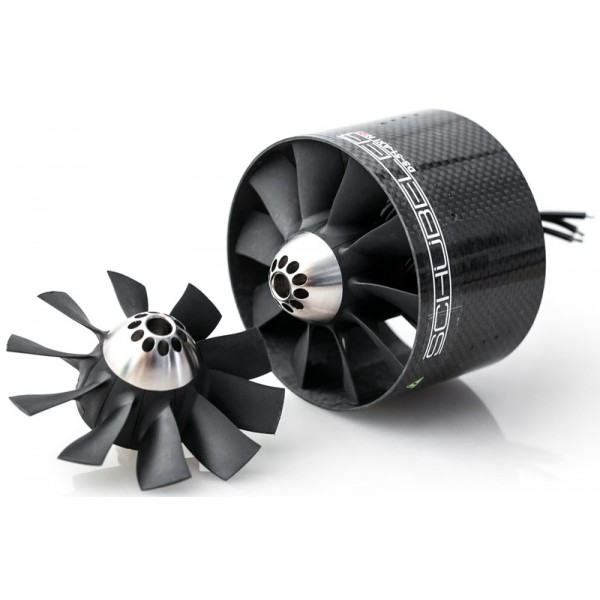

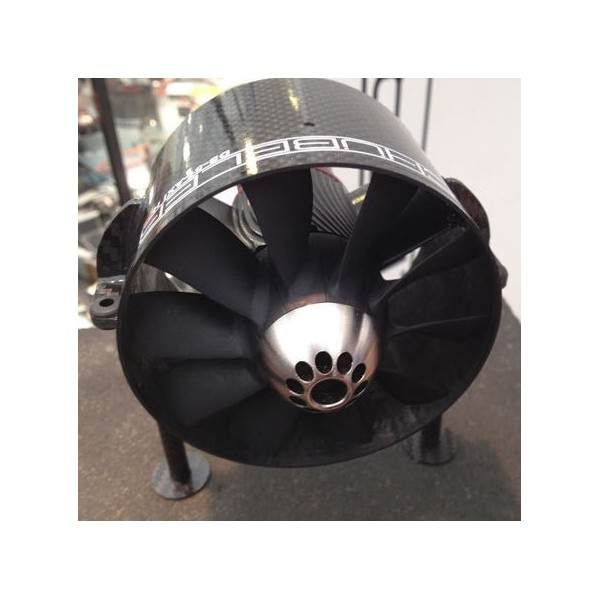

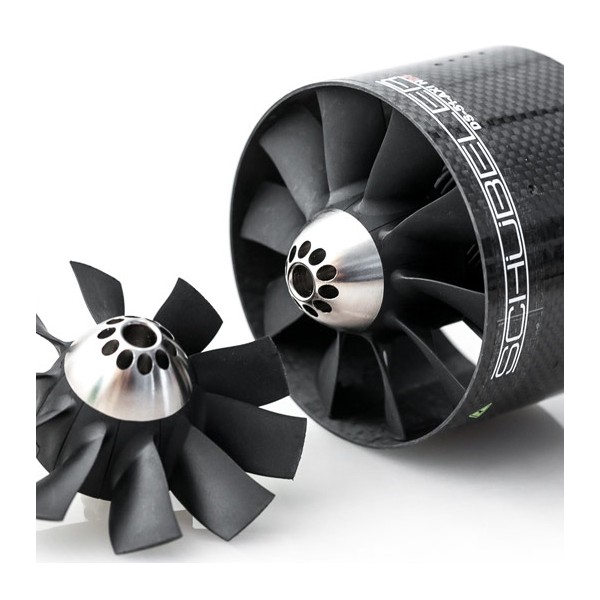

Schubeler DS-51-AXI HDS 90mm Carbon EDF Ducted Fan with carbon brackets preinstalled
Schubeler DS-51-AXI HDS 90mm Carbon EDF Ducted Fan.
For from 36 to 39mm motors.
Over 6,5kg thrust power.
Specifications:
- DS-51-AXI HDS (90mm)
- max rpm: 50.000
- max power: 5350 W
- max static thrust: 64 N equivalent to around 6.5kg
- max efflux velocity: 101 m/s
- weight: 107 g
- max motor diameter: 36-39 mm
- for 5mm shaft diameter
Some measurments examples :
- Typhoon HET 700-68-2100kv motor / 5S / 100A / Thrust 3,2kg
- Typhoon HET 650-68-1600kv motor / 6S / 68A / Thrust 2,8kg
- Typhoon HET 700-68-2100kv motor / 6S / 135A / Thrust 4,3kg
- Typhoon HET 700-68-1200kv motor / 8S / 54A / Thrust 3kg
- Typhoon HET 650-68-1130kv motor / 10S / 62A / Thrust 3,8kg
- Typhoon HET 700-68-1200kv motor / 10S / 78A / Thrust 4,3kg
Schübeler HDS & HST manual (UK)
Schübeler HDS and HST mounting and user manual (UK)
