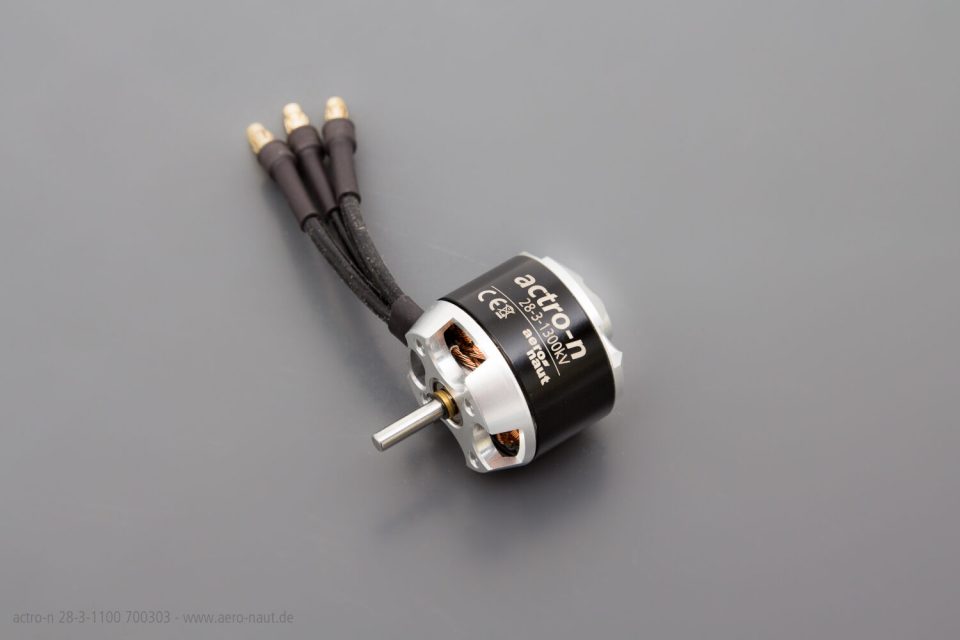

Product information "actro-n 28-3-1300"
The new actro-n engines are not only intended for the company's own kits, but also for a large number of aircraft models on the market. In this series, powerful electric motors of sizes 28-50 mm are offered, which are adapted in speed and torque to the common electric gliders in the 1.5-3 m class, as well as the motors find their place in our boats with hulls up to approx. 80cm. The 35 mm motors are also ideal for trainer models up to approx. 1.6 m wingspan with a take-off weight of up to 2.5 kg or boats from a length of approx. 80 cm. The 50mm series is suitable for larger electric aircraft models such as our Cessna (order no. 1371/00) and for boats in the size class of our Comtesse (order no. 3085/00).
Engine | ACTRO-N 28-3-1300 |

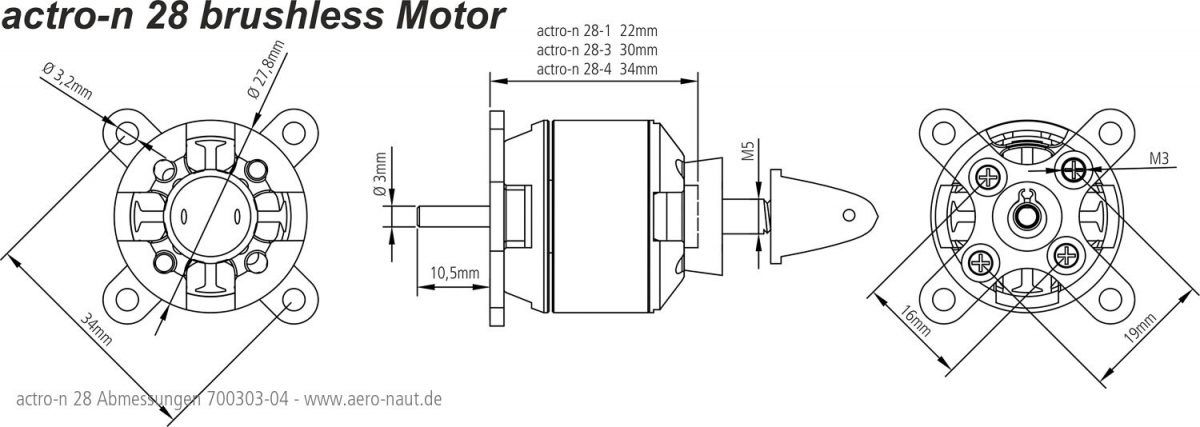

Dimensions approx. | 28 x 30 mm |
Idle | 1,300 rpm |
Shaft Ø | 3.0 mm |
Wavelength approx. | 11 mm |
LiPo | 2-3 |
No-load current | 1.2 A |
Rec. Continuous current | 20 A |
Max. current for a short time | 25 A |
Max. power approx. | 300 W |
Weight approx. | 53 g |
Propeller Recommendation | 2S - 10x6" 3S - 9x6" |
