Powerful Drive for Demanding Model Building Projects

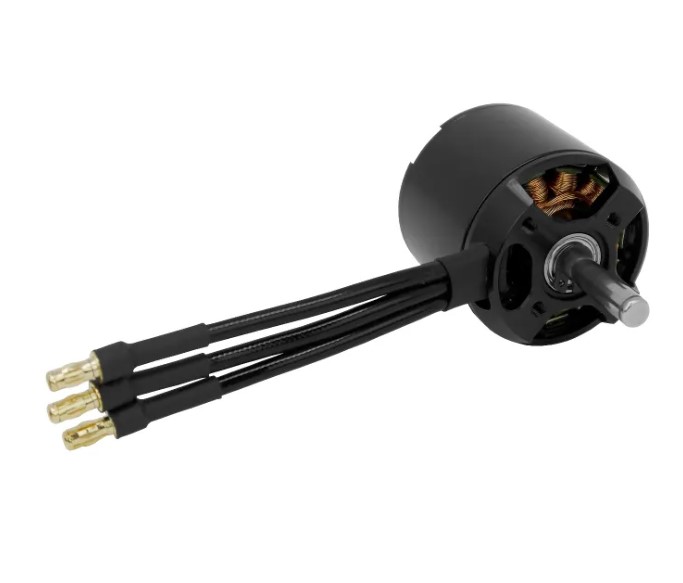

The SPITZ Brushless Motor 4250-07 720KV is the perfect choice for demanding model builders and industrial applications. As a 14-pole brushless outrunner, this motor impresses with its excellent performance and reliability. Thanks to the use of a tempered aluminum alloy with magnesium and silicon (6061-T6), the motor offers exceptional durability. The high copper fill factor of the coils contributes to efficient operation, while the sintered neodymium magnets provide high torque.

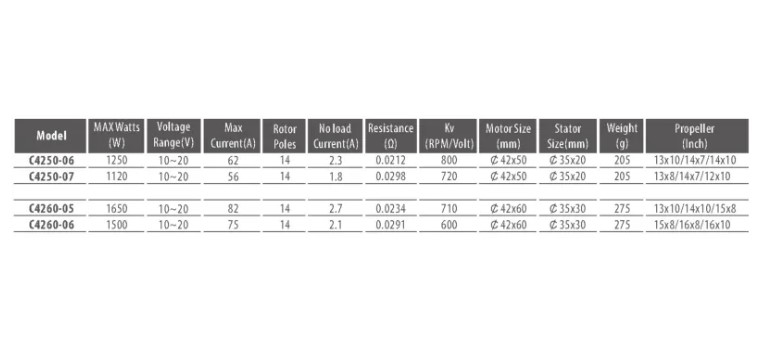

Technical Data and Performance Features

Max. Power: 1120 W

Voltage Range: 10-20 V

Max. Current: 56 A

No-load Current: 1.8 A

Resistance: 0.0298 Ω

KV (RPM per Volt): 720 RPM/V

Motor Weight: 205 g

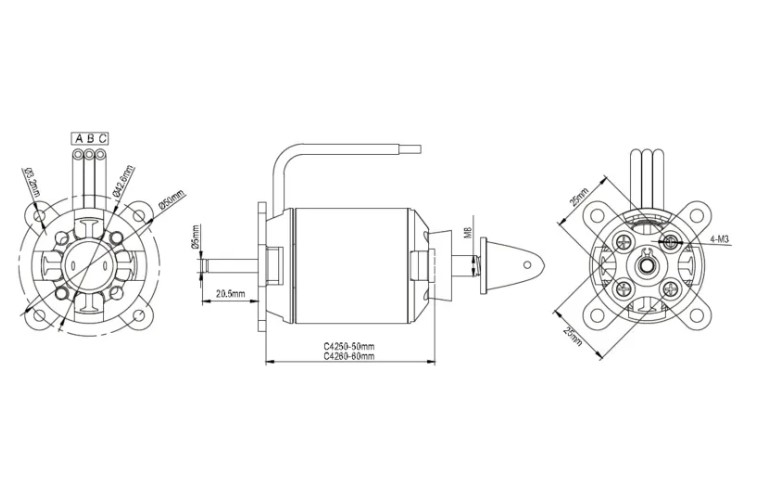

Motor Size: ø 42 x 50 mm

Stator Size: ø 35 x 20 mm

Recommended Propellers: 13 x 8", 14 x 7", 14 x 10"

Robust and Durable Construction

The SPITZ Brushless Motor 4250-07 720KV is made from a tempered aluminum alloy (6061-T6) known for its strength and durability. This ensures a long service life and high resistance to mechanical stress. The motor boasts high efficiency due to the high copper fill factor of the coils. The strong sintered neodymium magnets provide high torque and excellent performance. The motor is equipped with precision ball bearings designed for high speeds, and the robust drive shafts further enhance the motor's reliability and performance.

Versatile Accessories for Easy Installation

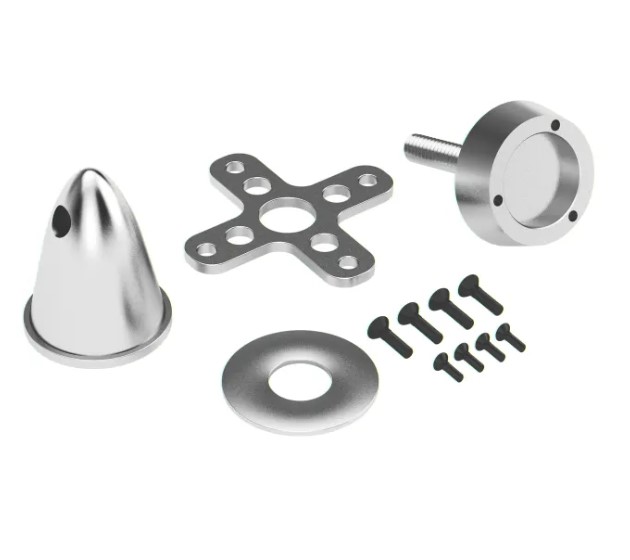

The SPITZ Brushless Motor 4250-07 720KV comes with high-quality mounting hardware and essential accessories, including a spinner, motor mount, and propeller adapter, ensuring easy and secure installation in your model aircraft. The included mounting materials, including a back mount, make installation simple and quick.

Perfect for Versatile Applications in Model Building and Industry

With its outstanding technical properties and comprehensive accessories, the SPITZ Brushless Motor 4250-07 720KV is ideal for a wide range of applications in model building and industry. Its high flexibility and performance make this motor the optimal choice for those seeking reliability and efficiency. Whether for model airplanes, drones, or multicopters, this motor offers the perfect combination of power and precision.

Areas of Application

Model Airplanes

Drones and Multicopters

Helicopters

Industrial Applications

Automation Technology

Robotics

Attractive Benefits for Model Building Enthusiasts and Industrial Customers

The SPITZ Brushless Motor 4250-07 720KV stands out for its exceptional quality and performance. With its robust construction, high-quality materials, and ease of use, this motor is the ideal choice for model building enthusiasts and industrial customers alike. Invest in reliability and efficiency – choose the SPITZ Brushless Motor 4250-07 720KV and experience model building and industrial applications at a new level.
