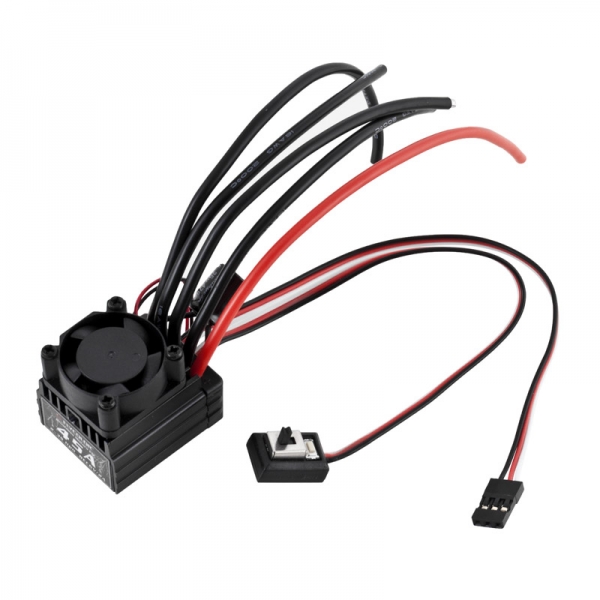

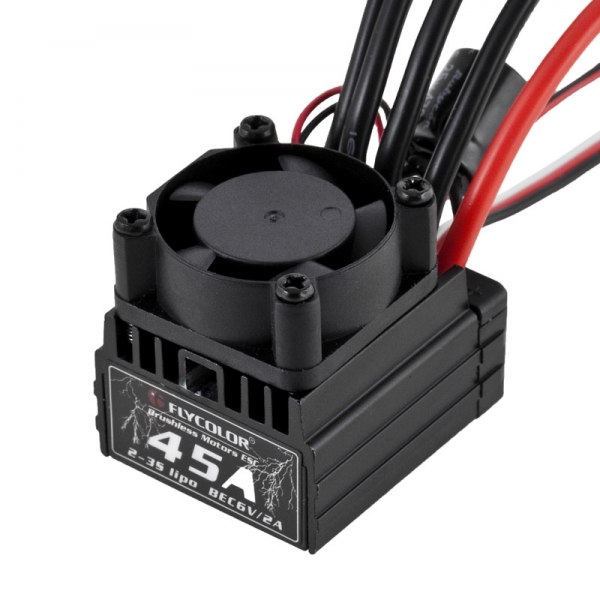

Flycolor Lightning series Car ESC 45A

Main features:

• Well-designed drive firmware for brushless sensor-less 3 phasemotor, smooth and delicate handle of speed control
• 8 timing options, make motor work with the best efficiency
• With high performance MCU, low internal resistance MOSFETand imported components. High reliability with low impedancecircuit board, strong resistance current and less heat production
• 8 acceleration options. Applied for all kinds of RC cars
• Multiple protection functions: battery low voltage protection, overtemperature protection, throttle signal loss protection, motor blocked protection, etc
• Easy to use, set parameters with radio and programming card according to sound prompt
• Oprional fan install available

Manufacturer's code: A-CW045003

Continous current: 45A
Burst Current: 260A
Power In: LiPo 2-3s, NiMH 6-10 cell
BEC: Linear BEC; 2S Lipo or equivalent NiHM BEC output:6V/2A; 3S LIPO or equivalent NiHM BEC output:6V/1A
Motor Supprt: ≥ 5,5T (e.g. 3650 size Motor)
Heat dissipating: Aluminium heatsink + fan (active)
Reccomended car class: 1:14, 1:12 & 1:10
Compatible motor type: Brushless sensorless
Dimensions: 34 x 29 x 31 mm

Weight: 54 g
