Product Description：

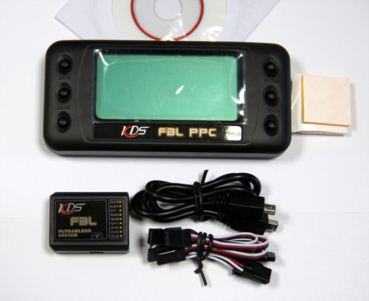

KDS-EBAR FLYBARLESS SYSTEM<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />

KDS-EBAR applies to 32 bit micro-controller with Super processing and operation ability
KDS-EBAR comes with high performance built-in gyro sensor. It can work for all 250 size to 700 size Nitro or EP powered rc helicopters.
KDS-EBAR supports traditional 90 degree swash, and 120 degree and 140 degree swash.
KDS-EBAR features built-in spinning correcting functions. When helicopter spins, and rotates tail, it will spin at a fixed point steadily, but not drift.
The functions of sensor inside KDS-EBAR are the same KDS900 gyro's; KDS-EBAR can work with narrow band 760us servos.
It is simple to set each parameter of KDS-EBAR in setup card attached, but no need computer.

Operating voltage: 4.8V-9V
Quiescent current: 50mA
Operating temperature: 20 degree ~45 degree
Operating humidness: 0%~80%
Dimention: 39*30*15mm (lenth x width x height)
Weight: 30g (with connecting wire)
