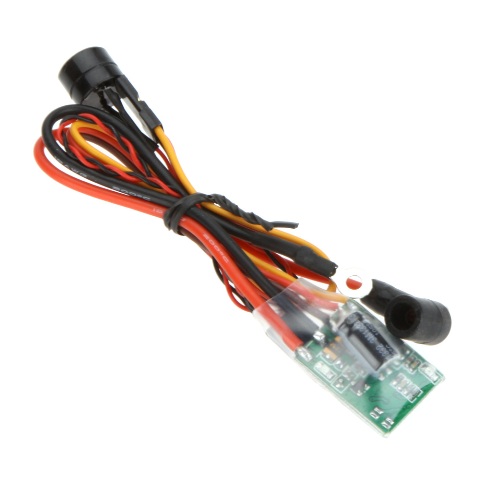

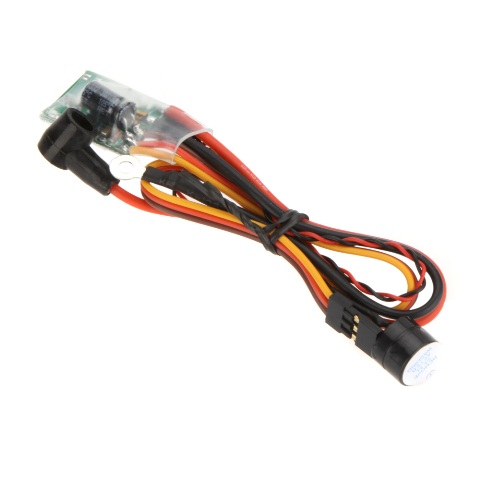

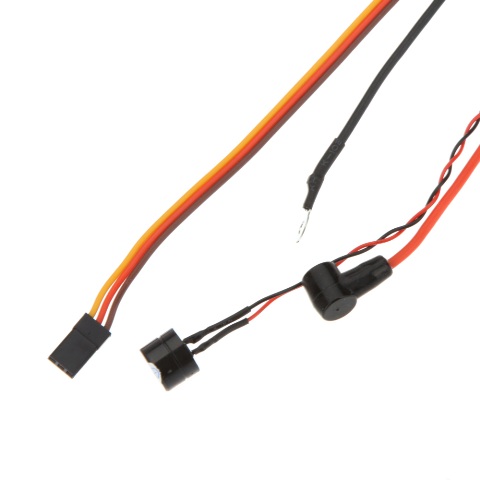

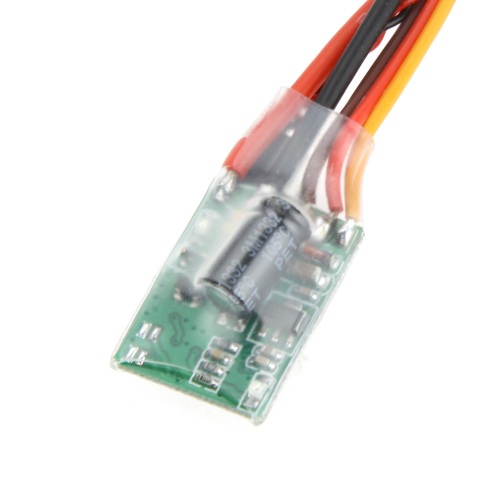

RCD3002 is a kind of remote-controlled driver for glow plug, customers can control the RCD3002's working status through the switch channel on the transmitter. The device shares the same battery pack with the receiver.

Time limit and low voltage protection, in order to ensure safe flying, the device will stop working when the trigger time is more than 5 minutes or the voltage is lower than 4.5V. Short circuit and over-heat protection work effectively when the system is short circuited and over-heat after long time flying, as soon as it returns normal, the device resumes working.

It can adjust output current automatically according to the working status of the glow plug, to ensure the glow plug's working temperature is the best, even if the glow plug is drowned into the fuel, it still can keep on a normal working temperature.

The device is of high efficiency and interference resistant as it is drove through low frequency impulse width directly, but the resistance of the battery can also influence its working state, in some cases, the glow plug won't become hot and red because of the high resistance of the battery.

Features:
Powered by receiver directly
Working voltage: 4.5V-8.4V
Red and blue LED lights indicates the present working status
Power consumption of stability supporting mode is less than 600mA
Monitoring and checking power on and off from the glow plug
Time limit, short circuit and low voltage protection

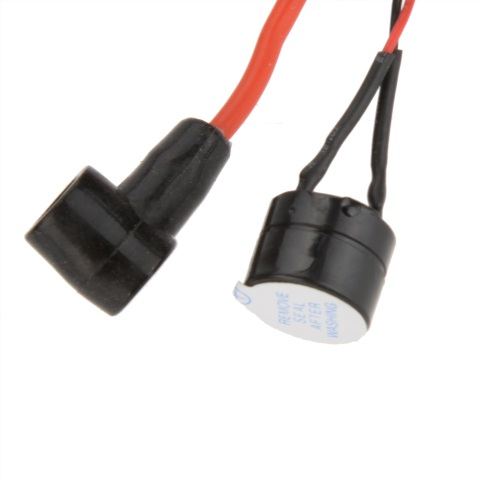

It can connect a buzzer from outside.

Application:
All kinds of engines with glow plug
Helicopter and fixed wing airplanes for stable 3D flight supporting

Specifications:
Input voltage: 4.5V-8.4V
Weight: 13g (with wires and clip)
