Description

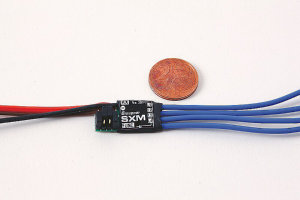

In the area of switching functions, this module is an absolute "jack-of-all-trades" and includes the widest variety of functions in a single device. The switching module is connected to an output of the receiver; the functions are controlled and steered using a joystick or switch of the transmitter. Four outputs can be controlled with one receiver channel! Jumpers can be used to assign three different functions to the four outputs.

• Switching functions: On / Off (buffered)Blinking light (1Hz) On / Off (buffered)Moment switch On / Off (only for output 2 and 4).
• Maximum switchable voltage: 5-cell LiPo batteries, 14-cell NiMH batteries, (21.5V).
• Designed for current up to 4A per output.
• The module is powered via the receiver battery up to a maximum of 8.5V (2-cell LiPo batteries).

Specification

All-up weight, approx.: 9 g
Dimensions (LxWxH): 22 x 13 x 8 mm

for manual click here
