High Power Head light switched by Rx ch
This LED car light system has especially been developed for RC model cars, but can also be used in other
RC models such as boats, helicopters, airplanes and quadrocopters.
Features
1. The LED power head Lights can be switched on and off on the transmitter by means of an electronic
switch that is plugged in a free channel on the receiver. The Headlights are powered over the JST-HX
balancer cables of a 2S LiPo battery.

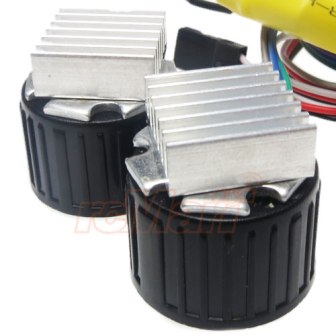

2. The high power LEDs are mounted in a housing, equipped with cooling ribs that enables heat dissipation.
Thanks to the mirror reflector, the light is extra focussed in a beam.
Contents
Electronic switch with connections, 2 x high power LED head lights, mounting material & manual
Specifications
required receiver voltage: 5V
Current LED ́s: 500mA / Voltage LED ́s: 6.5V~8.4V (2S LiPo)
Housing diameter: 22mm - housing height: 21mm - receiver cable length: 300mm -
JST-HX Cable length: 180mm - head lights cable length: 200mm. All cables are connected to the control unit.
