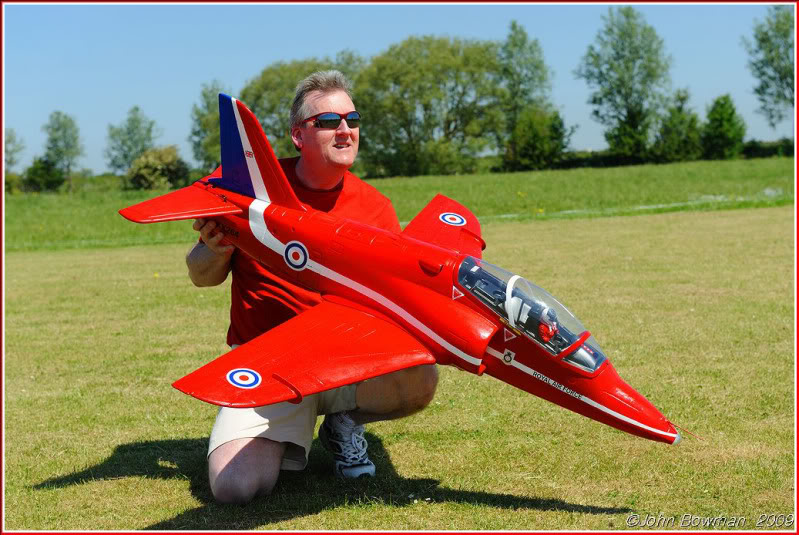

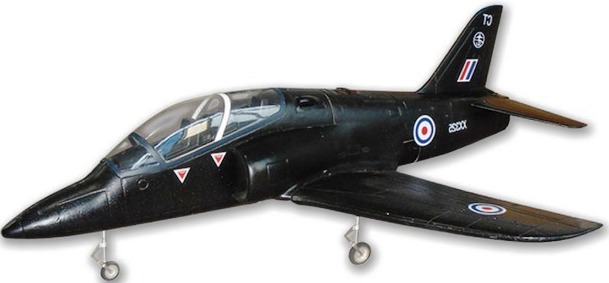

The Hawk is another new member to the styrofoam EDF jet model series. The Hawk wing span up to 1.36m (53.5"). The detail panel line and the color scheme on the fuselage made it superb in this class of model in the market.
It powered by single new developed 92mm ducted fan unit with B36 class brushless motor.
The kit comes with the scale aluminium suspension landing gear.
The fuselage separated by 4 pieces for easy shipping.
The new Hawk designed both fix and retract gear. Standard kit comes with fix landing gear. Optional air retract package available to make the Sabre supperb scale as well as high speedy on sky.
The fuselage reserve enough room for high capacity battery for longer time and higher air speed.
The optional nose lighting are available.
Material: Styrofoam (EPS)
Wingspan: 1365mm(53.5")
Length: 1465mm
Wing Area : 29dm sq.
Height: 535mm
Airfoil: RG-14
Weight: 730g (body)
Flying weight: 2430g (with air retract landing gear)
Fan unit: 92mm included
Motor: 1600 kv (Shaft dia 5mm) required
ESC: 60A w/BEC required
Battery : Li-Po, 18.5v-22.2v(5 - 6 cells), 3600mAh, 20C required
Radio: 4-5 channel required
Servo: Micro servo (8g) x 5, torque > 2.2kg required
Alu Landing gear: included
Optional air retract available.
