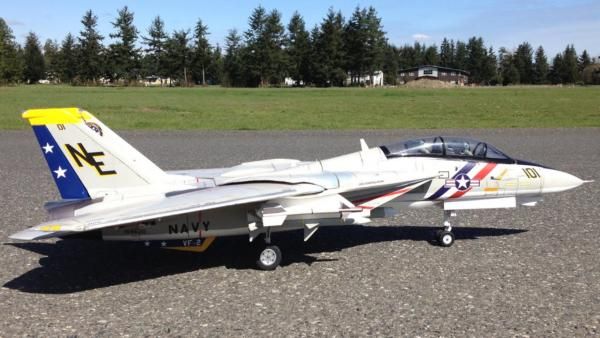

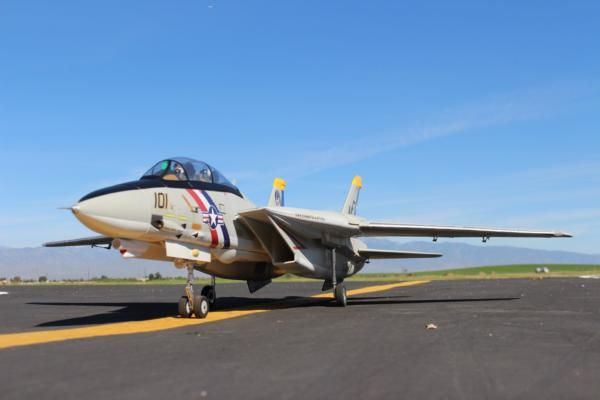

We announce our Super Scale F-14D Tomcat! Never before has an electric F-14 been produced in this size and with this high a degree of scale fidelity and quality. Easily one of the most beloved jets in history, we’re especially excited to offer this thrilling F-14D Tomcat. Our team worked tirelessly to develop an RC model which brings the excitement and scale performance of this hallmark aircraft to your local flying field and to appropriately honor the F-14 Tomcat’s rightful place in aviation history. We chose to depict “Bullet 101”, the specially marked F-14D from the VF-2 squadron “Bounty Hunters”, which was painted in the mid-1990s to celebrate the 25th anniversary of the F-14’s service in the United States Navy.

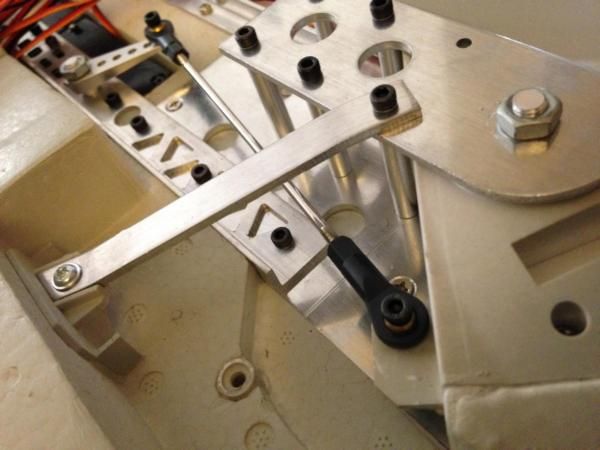

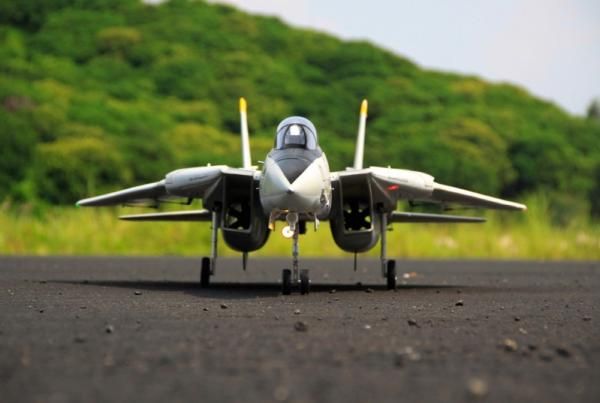

The signature feature of the real F-14 is its sweeping wing, and we’ve worked to design this model around this function as well. Our lightweight, aluminum “Wing Box” design supports a rigid wing in both forward and swept configurations. The wings pivot on flat bearings to reduce resistance and wear. Electric servoless actuators extend and sweep the wings using steel control rods and brass ball links. The result of this design is a durable, maintenance-free wing sweep feature which provides pilots with a worthy F-14 flying experience.

Scale fidelity, surface details, and builder-friendliness were also specific areas of focus. The PNP model arrives with the main fuselage completely assembled. All the electronics -servos, EDFs, ESCs, UBEC, retracts, and lights—are completely installed at the factory. The builder simply needs to screw on the wings and epoxy on the forward nose section and the assorted surface details like the wing fences, antennas, pitot tube, etc. To further simplify the wiring and setup, this F14 incorporates an onboard mixing circuit board which controls all the servos, taileron/aileron mixing, wing sweeping, and the lighting package.

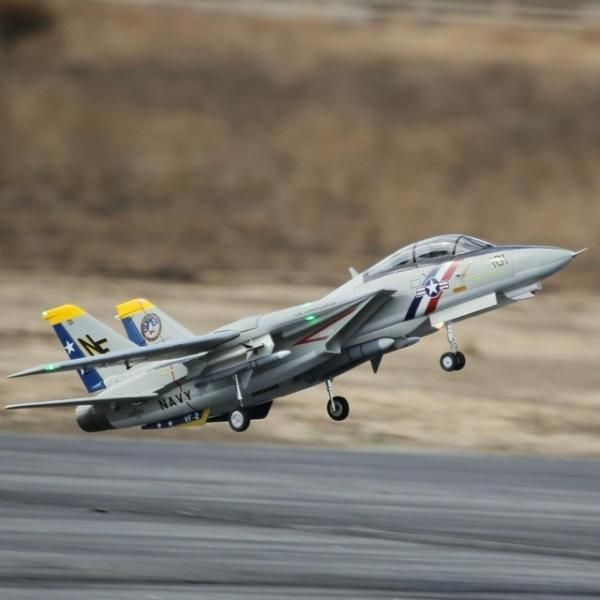

While the complexity of this F-14D make it the largest, most impressive, and heaviest EDF jet available at Motion RC to date, the aircraft uses two 80mm 12 blade EDFs and two 6s 4000mAh batteries which can propel it through the sky at 100mph. The Freewing F-14 is also extremely capable and stable at slow flight. The model can cruise at 60% throttle, can turn at 40% throttle even with the wings swept rearward, and can land at less than 40mph with full flaps. The F-14D’s two powerplants utilize two 3530-1680kV outrunners and 80A ESCs. An 8 amp UBEC supplies the ten servos with dependable power to all systems.

More Information

Manufacturer: Freewing

Wing span: 155 cm

Length :1498 cm

Weight: 4160 without battery g

Assembly level: Engine installed, Servos installed, Ready to fly

Radiocontrol :7 CH (not included)

2 x 80 A ESC with EC5 connector (included)

Motor: 2 x Brushless 3530-1680KV (included)

Servos :2 micro 8 mini with metal gears (included)

Material :EPO

Comes with: Servos, Electric motor, Variator, Retract gears, Ducted fan, Navigation lights

Battery: 2 x 6S 4200 mAh (not included)

English Manual

What's in the box?

• Model officially licensed by Northrop Grumman
• 2x 12 Blade factory balanced 80mm EDFs with metal housing and 3530•1680kV brushless outrunner motors produces realistic jet turbine sound
• Rigid aluminum wing box assembly for a swept wing configuration
• Pre•installed servoless actuators to sweep the wing during flight

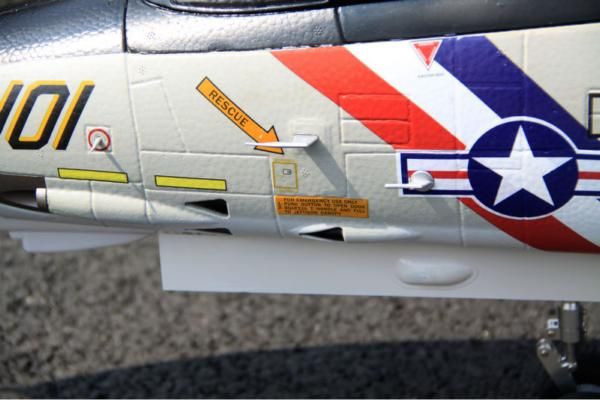

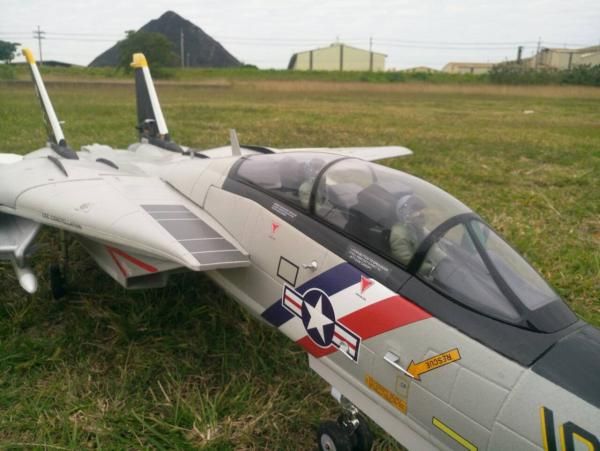

• Super scale details include hand painted pilots, antennas, pitot tubes, etc
• Proudly displaying the authentic "Bullet 101" livery of the VF•2 squandron "Bounty Hunters"
• 2x 80 Amp Hobbywing ESCs with single 8 amp UBEC
• Electronic retractable landing gear with all metal shock•absorbing struts
• Steerable, shock absorbing nose gear for enhanced ground maneuverability
• Servo operated nose gear door (pre•installed sequencer)
• Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility

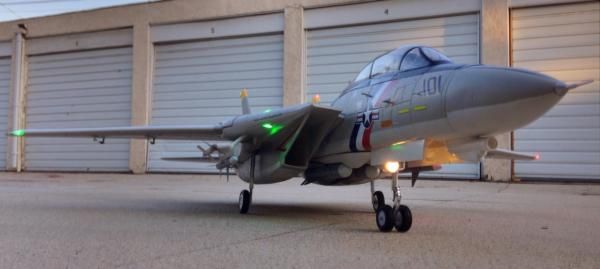

• 9x LED lights plus landing light
• Nylon hinges on all control surfaces
• Gapless flap hinges
• Outrunner motors, servos, ESCs and EDFs come pre•installed for your convenience (PNP version only)

• Removable magnetic nose cone for convenient transport

Needed to Complete

• 7CH radio control

• 2 x 6S 4200 LiPo battery with EC5 connector

• Battery charger for Lipo
