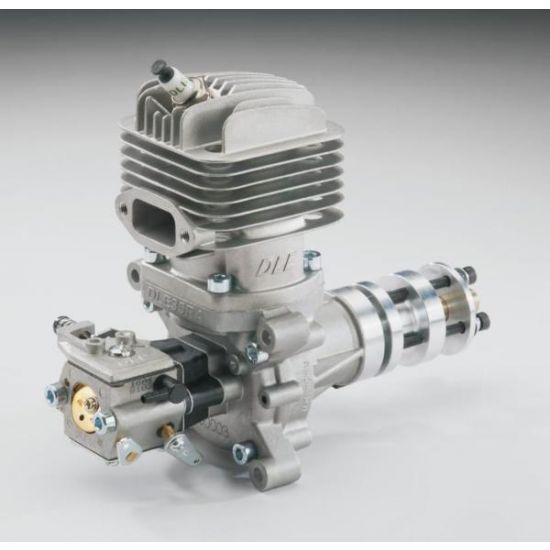

DLE 35CC RA

High performance in a compact package!
Producing 400 rpm more than the DLE-30, the DLE-35RA offers gas power convenience and performance in a popular size — great for pattern pilots and any fliers eager to give their aerobatic aircraft an extra edge. The rear exhaust design is ideal for tuned pipe setups.
Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
Redesigned, lightened piston skirt provides better throttle response, fuel economy and resistance to wear.
Included muffler’s two outlets reduce back pressure and improve performance.
Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.
Specifications:
Stock Number: DLEG0435
Displacement: 34.9 cc (2.13 cu in)
Bore: 1.52 in (38.5 mm)
Stroke: 1.18 in (30 mm)
Total Weight: 2.77 lb (1.26 kg)
RPM Range: 1,500-8,500
Output: 4.1 hp @ 8,500 rpm
Requires: Unleaded gasoline, oil, ignition battery & propeller
Includes: Electronic ignition, muffler, spark plug, engine standoffs, integrated choke rod guide & rear-mounted carb
Technical Data:
Ignition Battery: 4.8V-12V NiMH, LiPo or LiFe pack (Voltage regulator required if LiPo or LiFe pack is used.)
Compression Ratio: 7.6:1
Gasoline/Oil Mix: 30:1

Weight Breakdown: Engine: 936 g Muffler:74 g Ignition: 211 g
