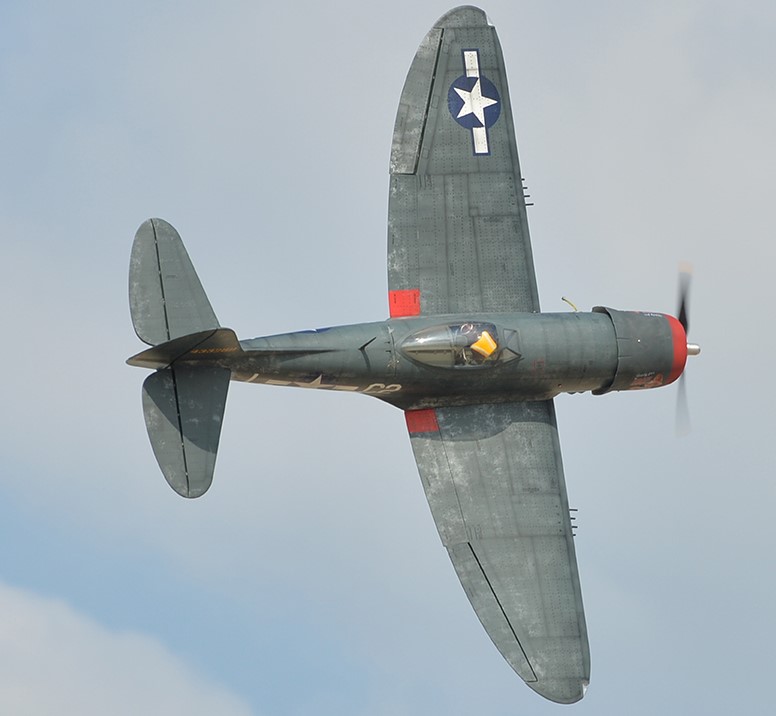

The original P47 Thunderbolt was an important fighter aircraft in World War II which was developed by Republic Aviation. Our model of the P47 Thunderbolt has been reconstructed with great attention to detail and can be flown with either an electric drive or a combustion engine. The majestic flight image impresses pilots and spectators alike. Particularly noteworthy are the retractable main landing gear and the retractable rear scale landing gear included in the scope of delivery.

Product features

P-47 THUNDERBOLT 60cc gas

Magnificent Warbird ARF that can be fitted with a thermal or electric motor. Structure in high quality balsa and plywood, laser cut assembled. Interlining with a mat finish and ultra-realistic aging taking on a real livery of the P-47.

New electric retractable main gear and CNC machined suspended legs (included!).

New electric retractable tail wheel with CNC machined hanging leg (included).

Product features

* ARF finished model in wooden construction (laser cut)
* Ready-to-cover as shown
* Ideal also for the installation of radial engines
* Wings multi-part with aluminum tube plug-in
* Painted GRP bonnet

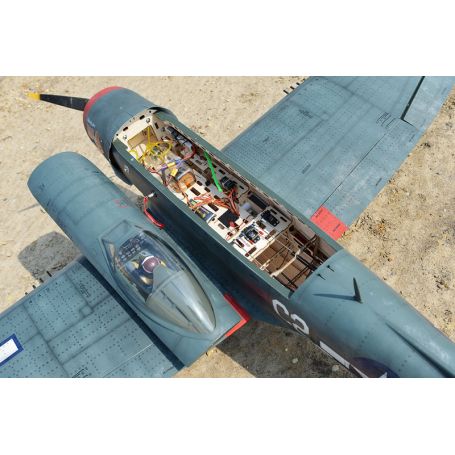

* Large access opening from above (e.B. battery change)
* Electric retractable landing gear with struts included
* Scale rear landing gear with catch hook (retractable)
* Hand-painted pilot's dummy
* Wheels, linkages, small parts
* Richly illustrated instructions

Technical data

Wingspan = 2260mm
Length = 2075mm
Area = 96.47dm²
Surface load = 120g/dm²
Weight = 11kg
R/C functions = rudder, elevator, ailerons, landing flaps, landing gear, motor
channels = 7 channels / 8 servos

Elements required thermal engine:

• Radio: minimum 7 channels.
• Servos: 8 Standard format, high torque.
• Engine: 50 - 60cc Petrol.
• RX battery and ignition: 6.0V 2400-2600mAh (2 Packs).
• Cone: type P-47.
• Propeller: Suitable for the engine.

Electric motor required elements:

• Radio: minimum 7 channels
• Servos: 7 Standard format, high torque.
• Motor: Brushless outrunner 5000 - 6500W, 230KV.
• Batteries: LiPo 6S 5500 - 6000mAh (2 Packs).
• Controller: 120A.
• Cone: type P-47
• Propeller: Suitable for the engine.
