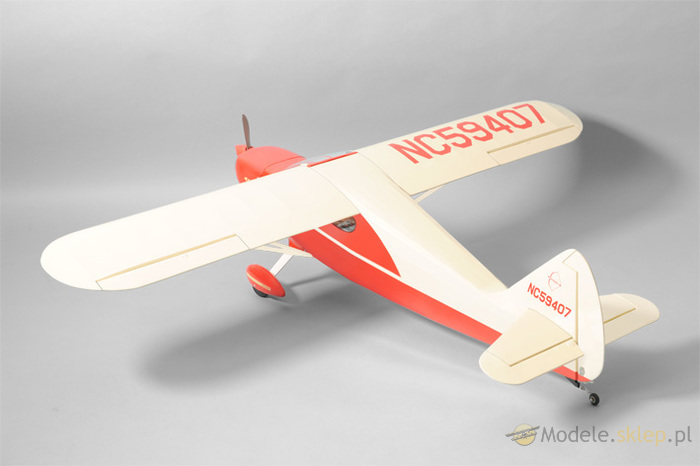

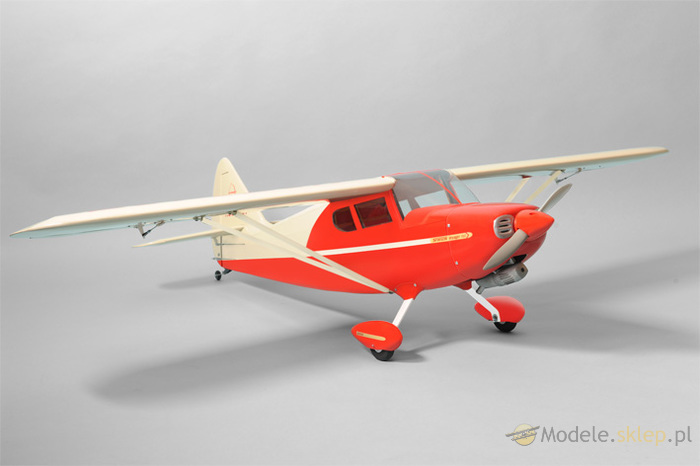

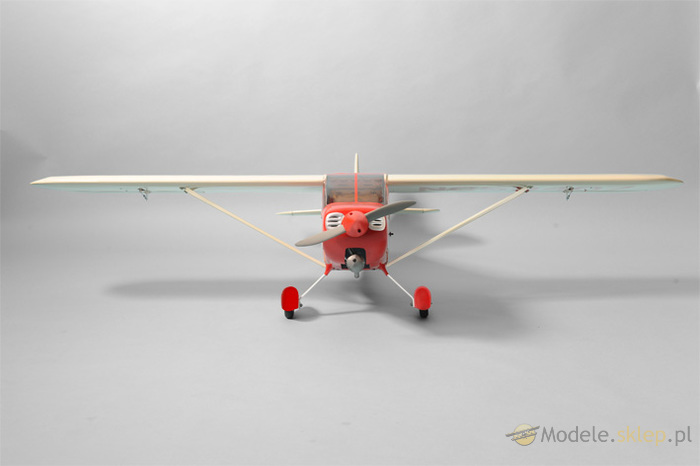

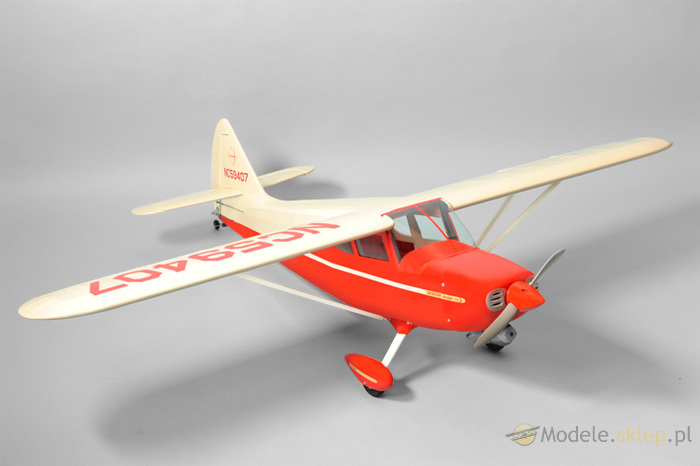

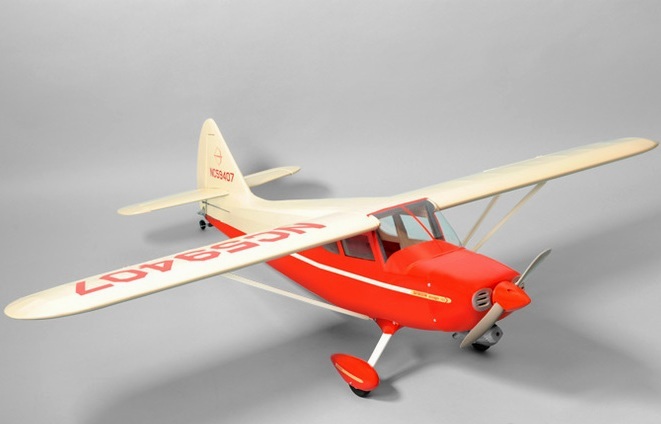

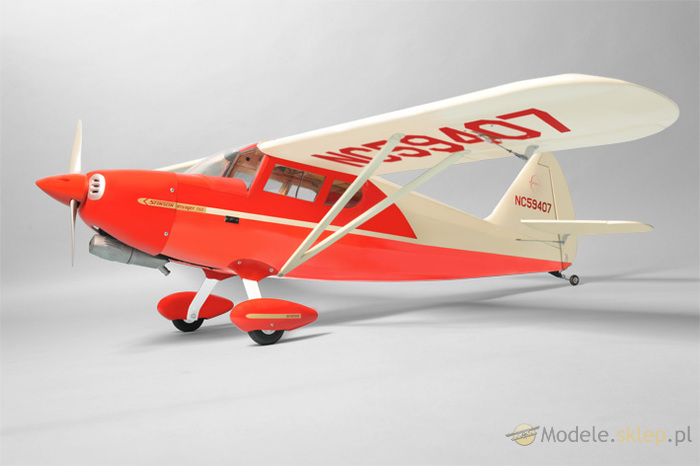

PHOENIX MODEL Stinson .46 - .55 ARF
Introducing

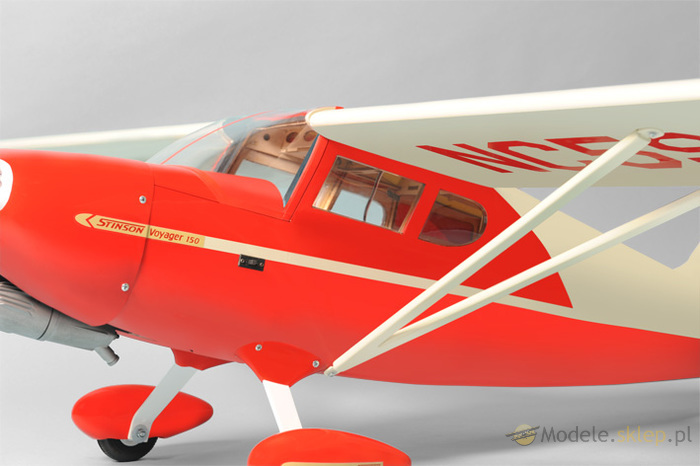

The Stinson comes out of the box with all kinds of details that have been finished for you, including a factory-painted fiberglass cowl, air scoops, dummy radial engine, painted canopy and pilot, scale strut covers, scale trim scheme and much more. And, the Stinson’s sheeted airframe compares favorably to its full-scale cousin. It helps maintain the model’s strict scale appearance and strong flight performance. Genuine OraCover® provides a durable, refined finish. It is completely built, requiring minimum assembly. She is a great plane very well made and very enjoyable.
Technical data
- Wingspan: 1604mm (63.31in)
- Length: 1224mm (48. 1 in)
- Flying weight: 2.6-3.0 kg
- Wing area: 37.5 dm2
- Wing loading: 74.5g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®

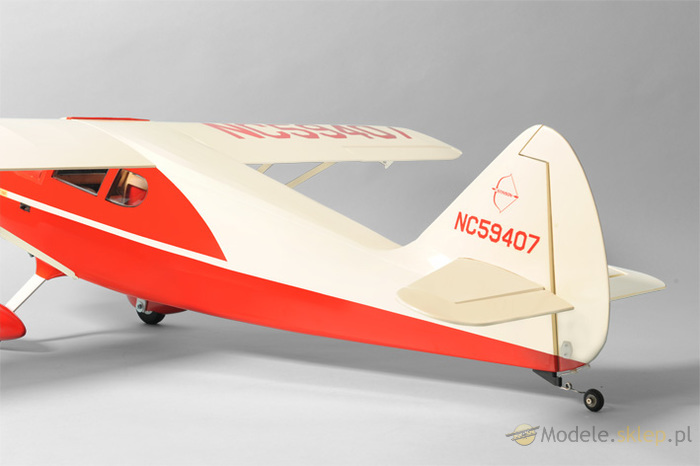

- Gear type: Aluminum main gear and spring tail gear (included)
- Spinner size: Plastic 58mm (included)
- Radio: 4 channel minimum (not included)
- Servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Propeller: suit with your engine

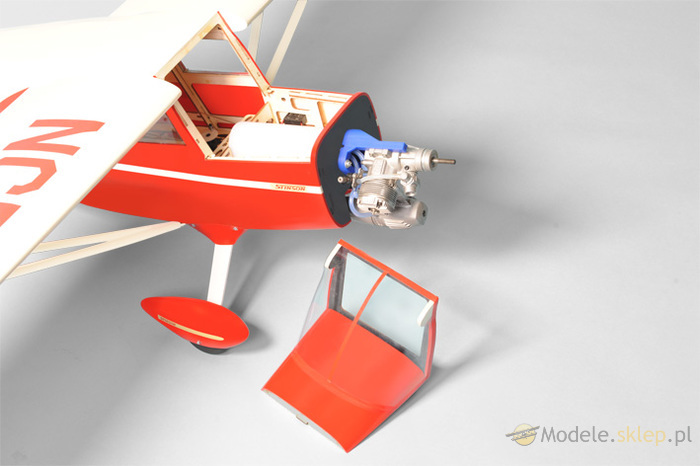

- Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
- Motor: brushless outrunner 1000-1400 W, 480 KV (not included)
- Gravity CG: 65 mm (2.6 in) Back from the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 10mm up/down, 10% expo; High: 12mm up/down, 10% expo
- Control throw Elevators: Low: 8mm up/down, 12% expo; High: 10mm up/down, 12% expo
- Control throw Rudder: Low: 25mm right/left, 15% expo; High: 40mm right/left, 15% expo
- Experience level: Intermediate
- Plane type: Scale Civilian

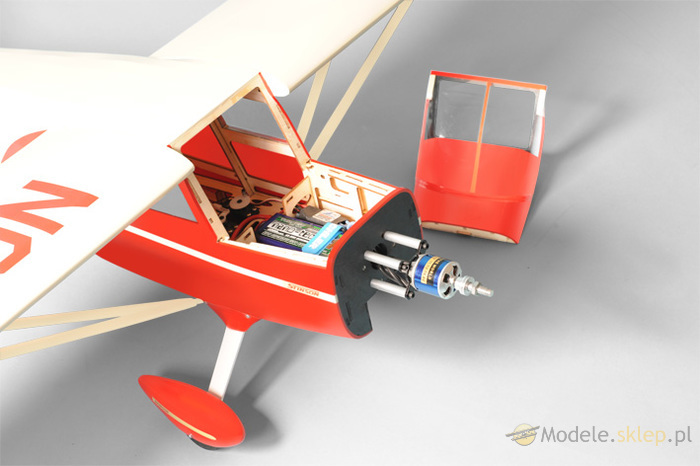

RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .46-.55 (not included)
- Lipo cell: 6 cells / 4000 – 5500mAh (not included)
- Esc: 50-70A (not included)
Feature

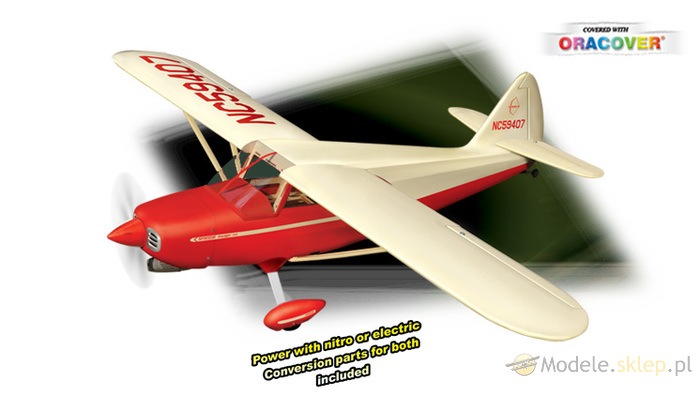

- Designed for compatibility with both GP and EP flight
- Covered in genuine ORACOVER®

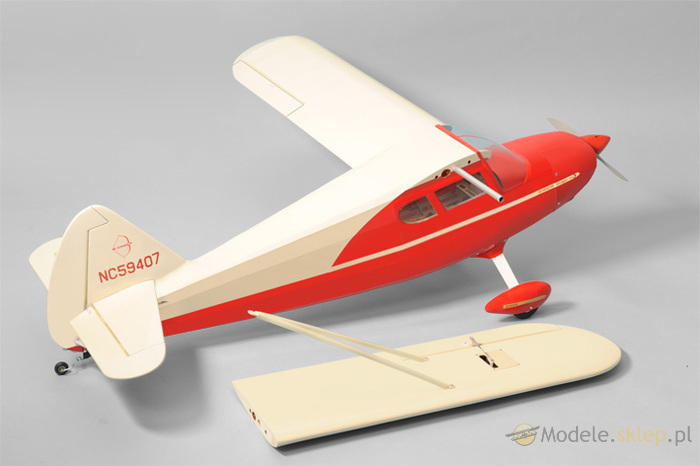

- Bolt-on two-piece wing for easy transport and setup at the field
- Strong Light Weight Construction
- High-quality hardware package included
Colour chart
- Ferrari Red (# 21023)
- Cream (# 21012)
