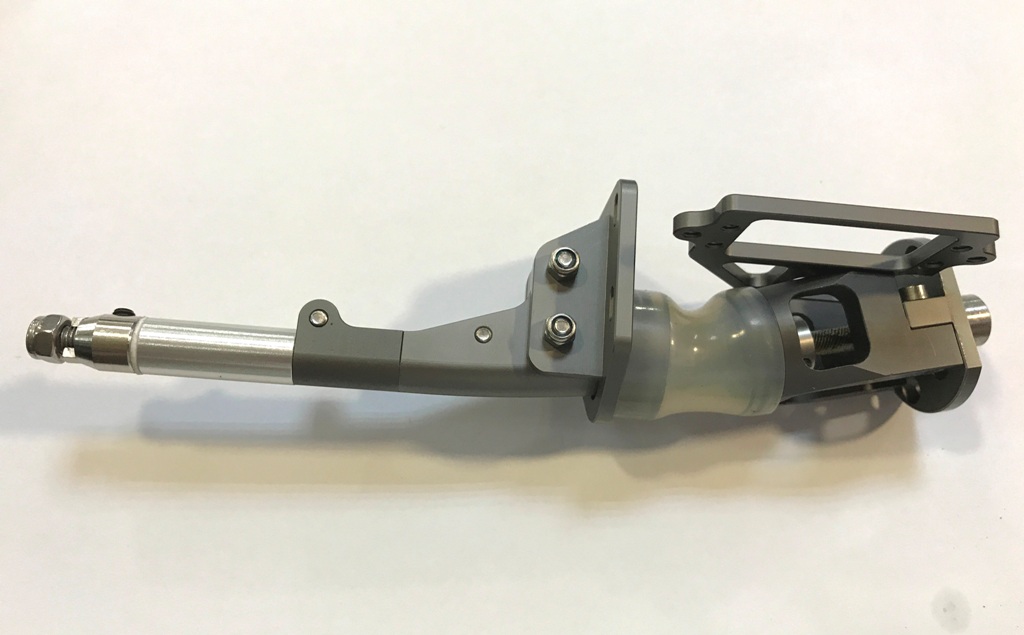

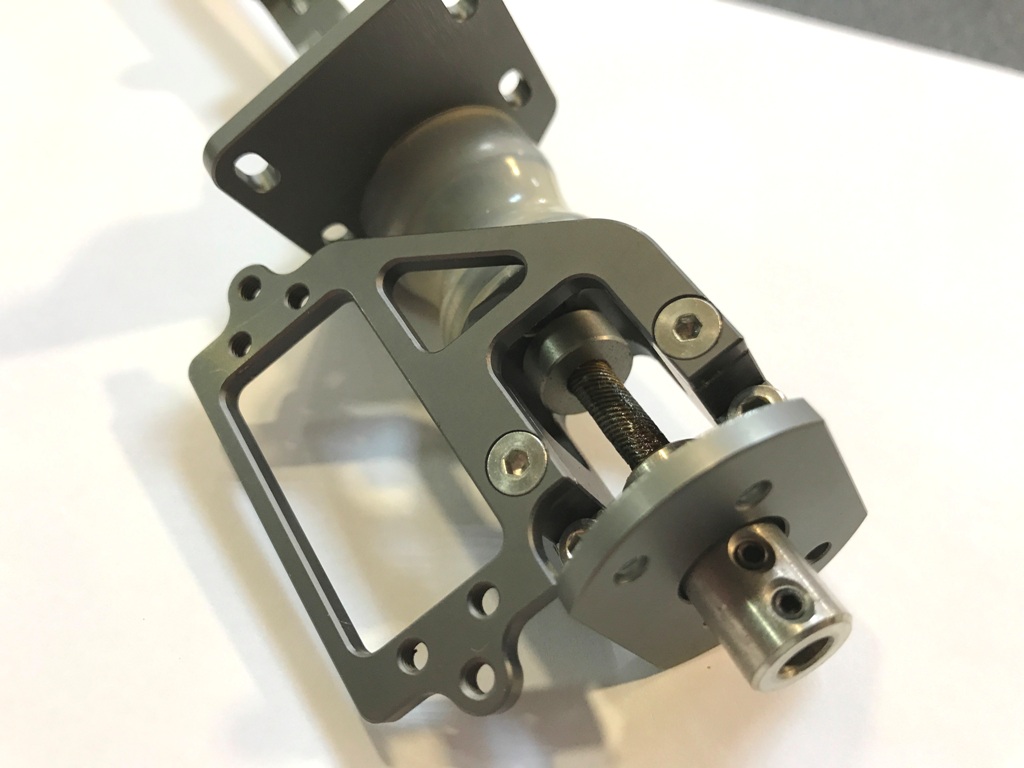

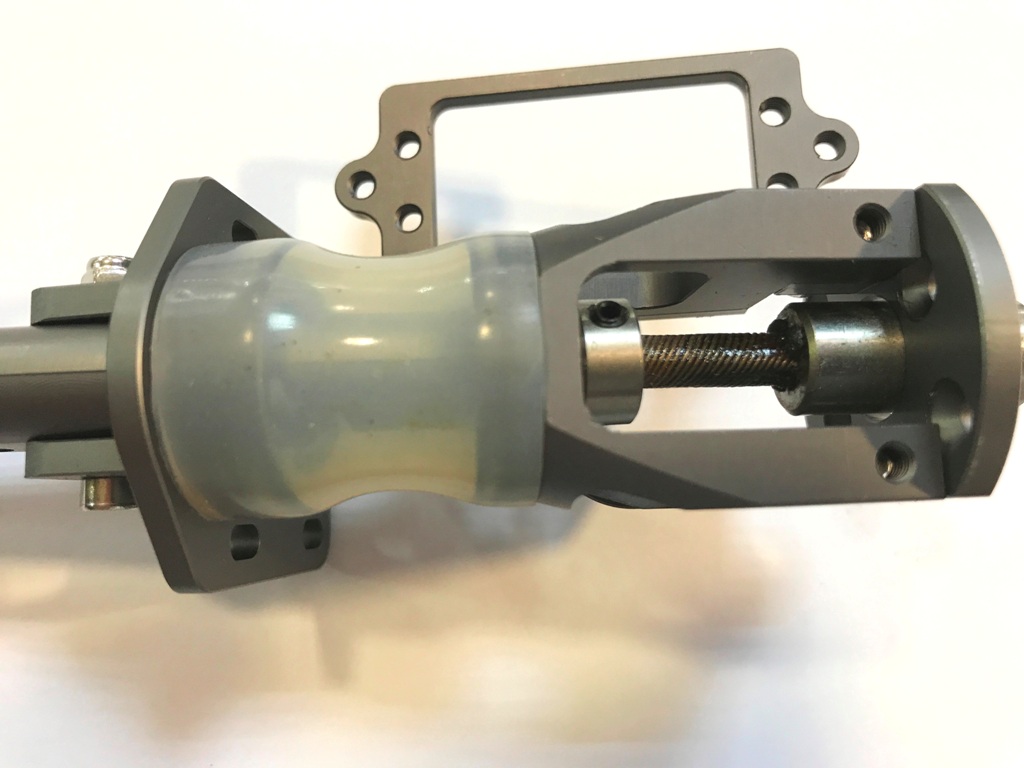

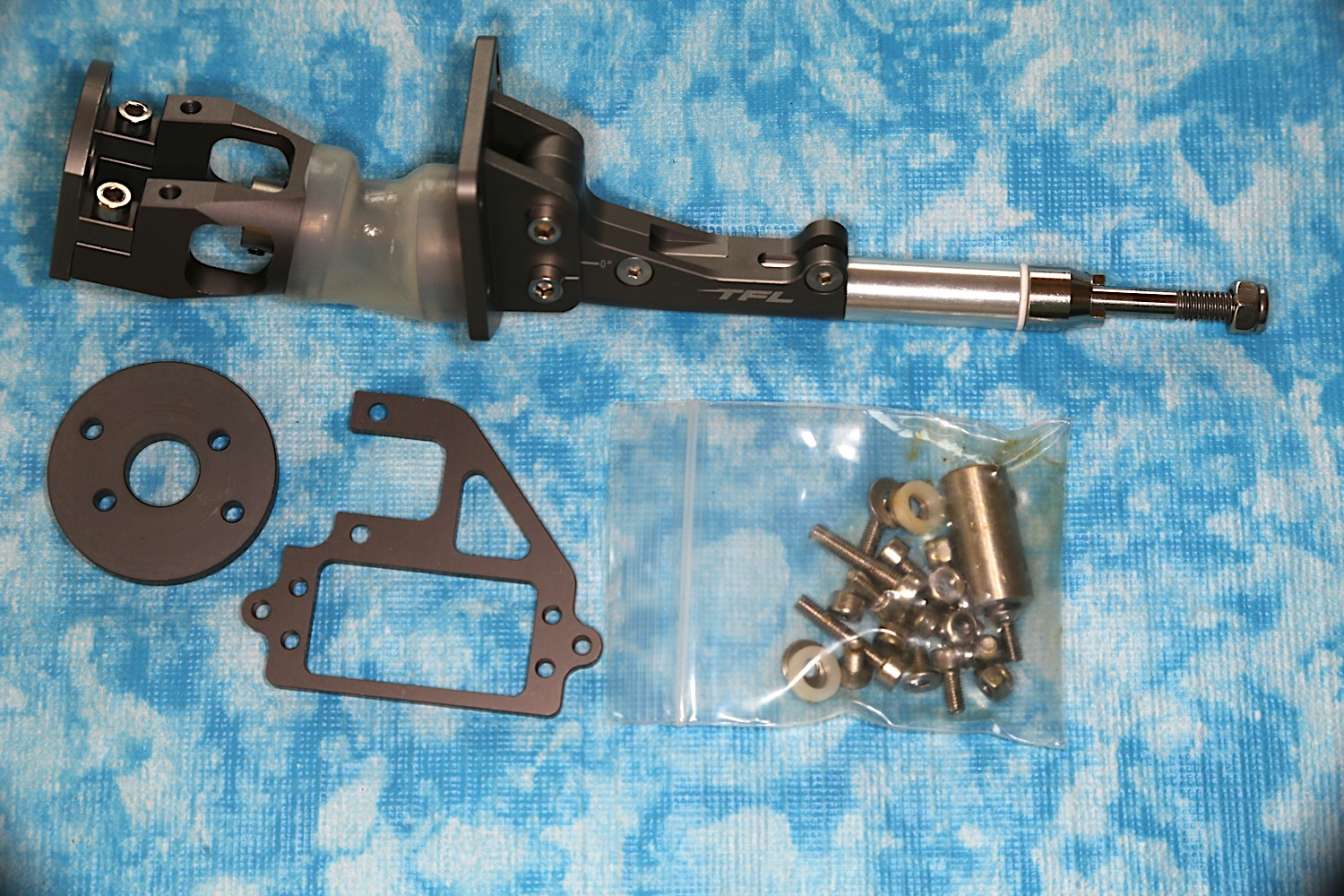

TFL Drive- System for 36-40 motors
TFL Drive system
for 36 engines
with 40 engines or longer engine
I would recommend a motor support
Flange H = 40.50 mm, B = 36 mm
Length tot. with end piece approx.185 mm
Length mirror without Drive-Dog 81 mm
incl. servo plate (for small servo 32 x 17mm)
Motor plate with LK 19 and 25mm
4 mm adapter for longer motor shafts
End piece and flex shaft 4.75mm hard soldered
Coupling of motor 5 mm to flex. square
without motor and propeller
