The SX-4 chassis 017 in the 20 year edition

The SX-4 chassis 017 is offered for this birthday with a great equipment at an extremely attractive price:

All new parts of the season 2016, e.g. new Chassis plate, servo saver, alloy damper plate rear, are now installed as standard.
As well as:
Hydraulic brake front and rear
Wheel adapter with brake discs Evo
Damper Big-Bore 017 with volume compensation
Fine gear tooth system 017
Safety wheel nuts

The chassis is pre-assembled. All screws (Torx stainless steel) are already provided with screw-locking lacquer.

The chassis is equipped with an extensive accessory pack consisting of front bumper, gas rod, brake linkage, servo mounting screws and other small parts.

The rolling center on the front axle can be changed over the available positions for the upper and lower a-arms. This allows the coordination for very different tracks and conditions.

The hardness of the 6mm stabilizer is adjustable.

With all adjustment possibilities, a simple handling was one of the important points of the development.

The new battery holder 017 is available as an option for different types of batteries, Lipo Shorty 2S, 4200mAh Life and 2700mAh Life.

The fine gear tooth system 017 is characterized by the direct screw connection of the gears.
This results in a very good run-out.
The differential gear is attached to the chassis.

The drive shafts also belong to the scope of supply.

The chassis allows the positioning of additional weights at different points.
The same weight (no . 1320002-2) is always used.

This allows you to change the balance of the chassis depending on the different tracks and conditions.

All CNC milling parts of the SX-4 chassis are made of the very high-quality aluminum 7075.

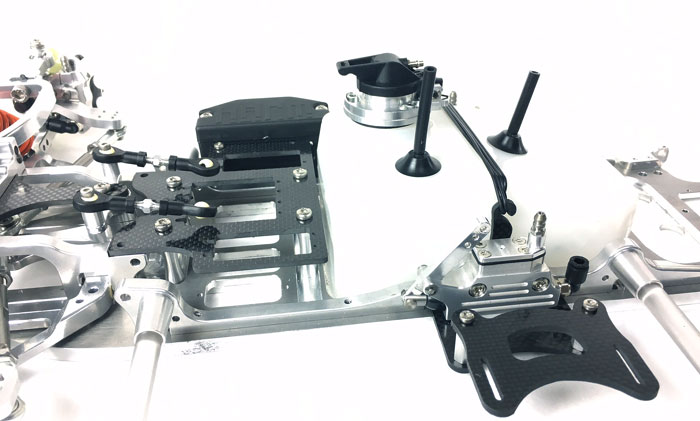

The pictures show parts which do not belong to the standard equipment.
