Description

The famous Black Hawk is a medium-weight transport helicopter that has been mass-produced by Sikorsky Aircraft since 1977. The UH60 designation is used for various export versions. Mainly used in the military sector as well as for air and sea rescue missions, a visual characteristic of this helicopter is the tail rotor mounted at an angle to the fuselage, which ensures good robustness even in difficult conditions and shelling.

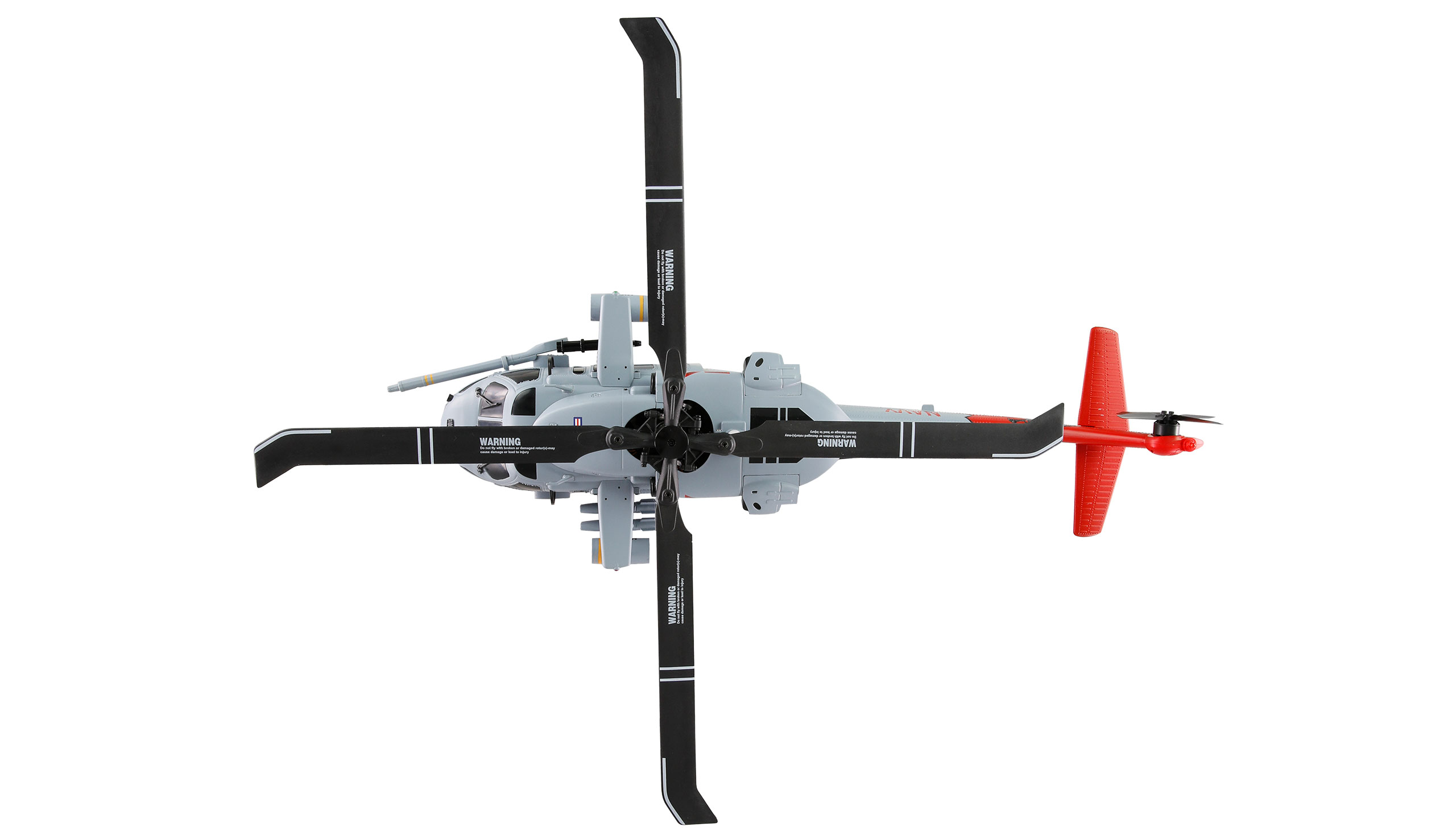

The model is a scale replica in 1:47 scale with a rotor diameter of 425 mm. Detailed appearance is combined with strong performance thanks to the brushless system. The model features functional doors, LED lighting, stubby wings with on-board armament, a damped landing gear with castors and a highly effective gyro. GPS geomagnetic flight control system enables useful functions such as automatic hovering, automatic circular flight, altitude hold, automatic return to launch site when battery is running low, one-button return, fail-safe return in case of signal loss, auto-takeoff, auto-landing, and an optical sensor flight mode. In stabilized mode, the UH60 Black Hawk is wonderfully easy to control, making it suitable for transitioning from RPM-controlled helicopter to a professional helicopter like in real life.

The supplied battery with charger has undervoltage protection and allows the status of the charge level to be displayed. It is also equipped with a searchlight mount. The high-quality 2.4GHz transmitter offers additional security thanks to a 2-way transmission system. The model is already programmed to the transmitter ready to fly. The remote control can also be adapted to individual needs, for example the switch from Mode 2 to Mode 1. There is also the option of connecting an S-Bus receiver, as the helicopter has a 5V S-Bus output board.

Note: The optical positioning system requires high-contrast surfaces to work. Water surfaces or the like can lead to errors.

Highlights:

GPS geomagnetic positioning system: For stabilized flight mode and useful functions such as auto-take-off, auto-return, auto-landing, auto-circular flight

sensor system for optical flight mode: Allows both beginners and experienced pilots to have a smooth and controlled flight experience

Battery with charger and status indicator: real-time monitoring of the power status prevents unexpected interruptions or failures thanks to efficient advance planning

Other features:

Scale landing gear damped and equipped

with foam tires 3D mode for professionals with slight aerobatic characteristics (collective pitch with constant speed)

Scale parts such as functional doors, weapon dummies and LED lighting

Automatic inverted flight in GPS mode at the touch

of a button 2.4GHZ transmitter with 2-way transmission system

Equipped with 5V S-Bus output board

Technical data:

Scale: 1:47

Fuselage length: 420mm

Fuselage width: 90mm

Fuselage height: 110mm

Rotor diameter: 425mm

Tail rotor: 70mm

Main material: Plastic

Main motor: Brushless 4006

Tail motor: Brushless 1104

Weight ready to fly: approx. 435g

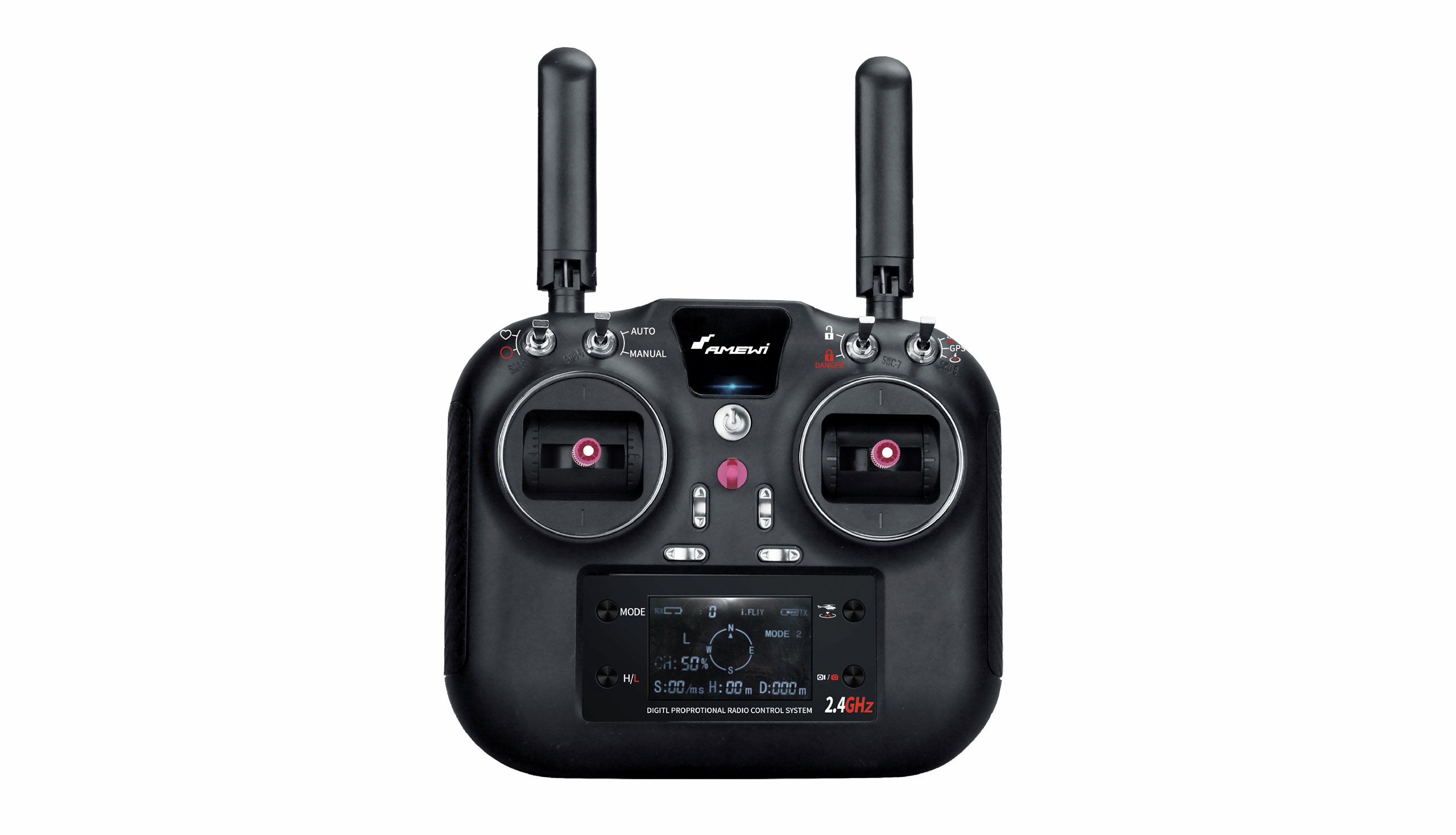

Remote control: 8-channel, 2.4GHz, Mode 2, Mode 1

Range: approx. 200m

Servos: 3x Micro digital

Battery: LiPo 3S 11.1V 1350mAh 30C Hardcase, 87x42x25mm, 118g

Flight Time: 7-9min

Charger: 220V/3A Charging Cradle Charging

Time: About 40-60min

Scope of delivery:

Model

Remote control

Battery

charger

Tool

Spare propeller front/rear

Instruction manual DE/EN

Required accessories:

4x 1.5V mignon batteries for remote control
