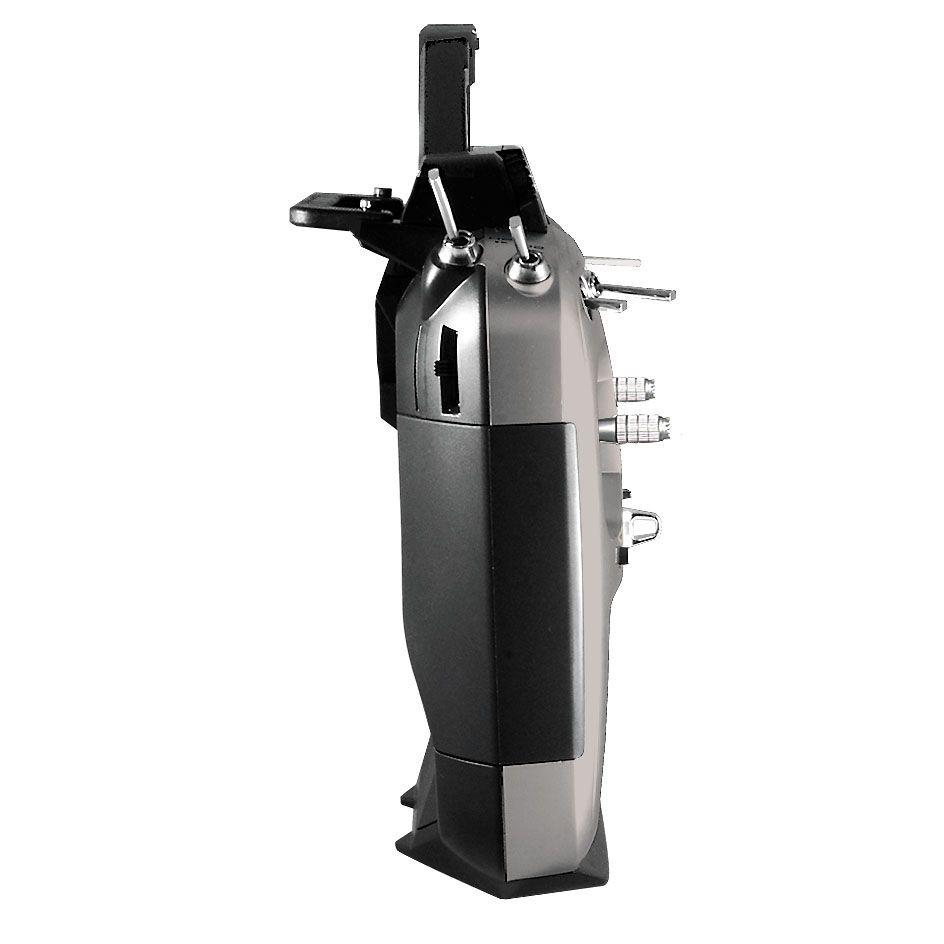

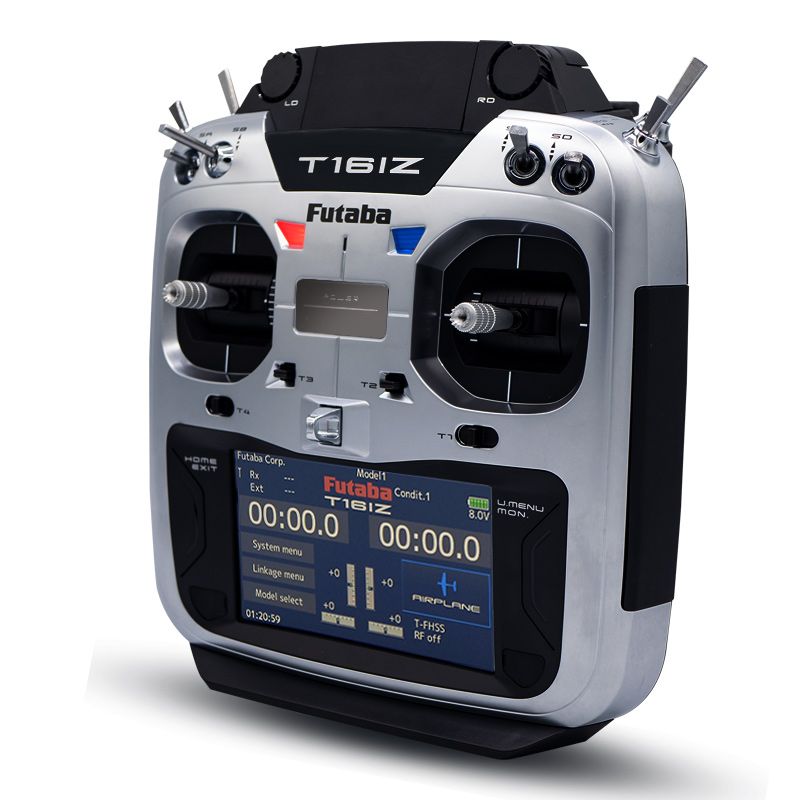

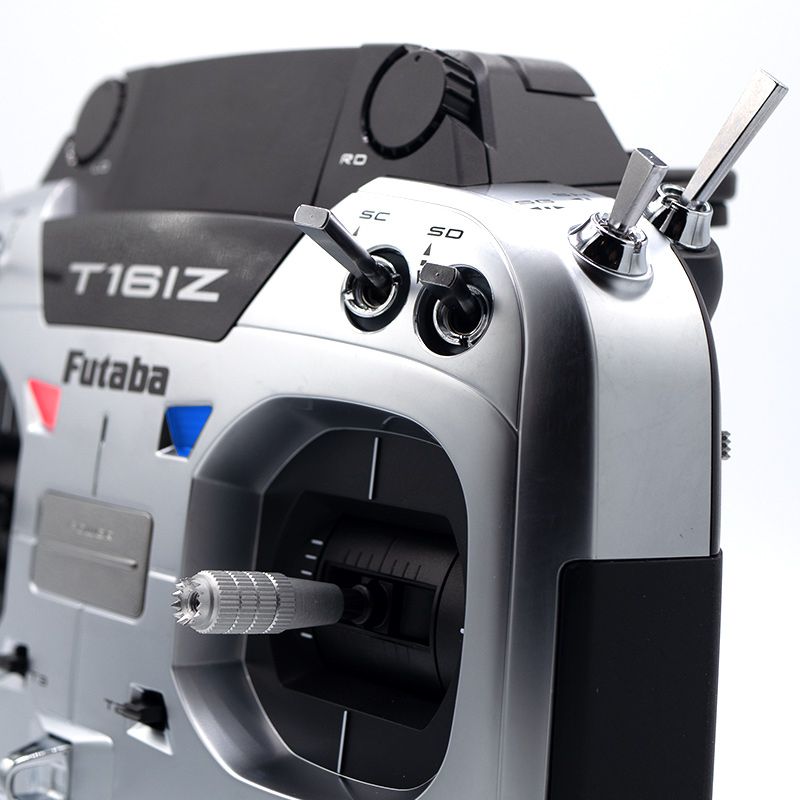

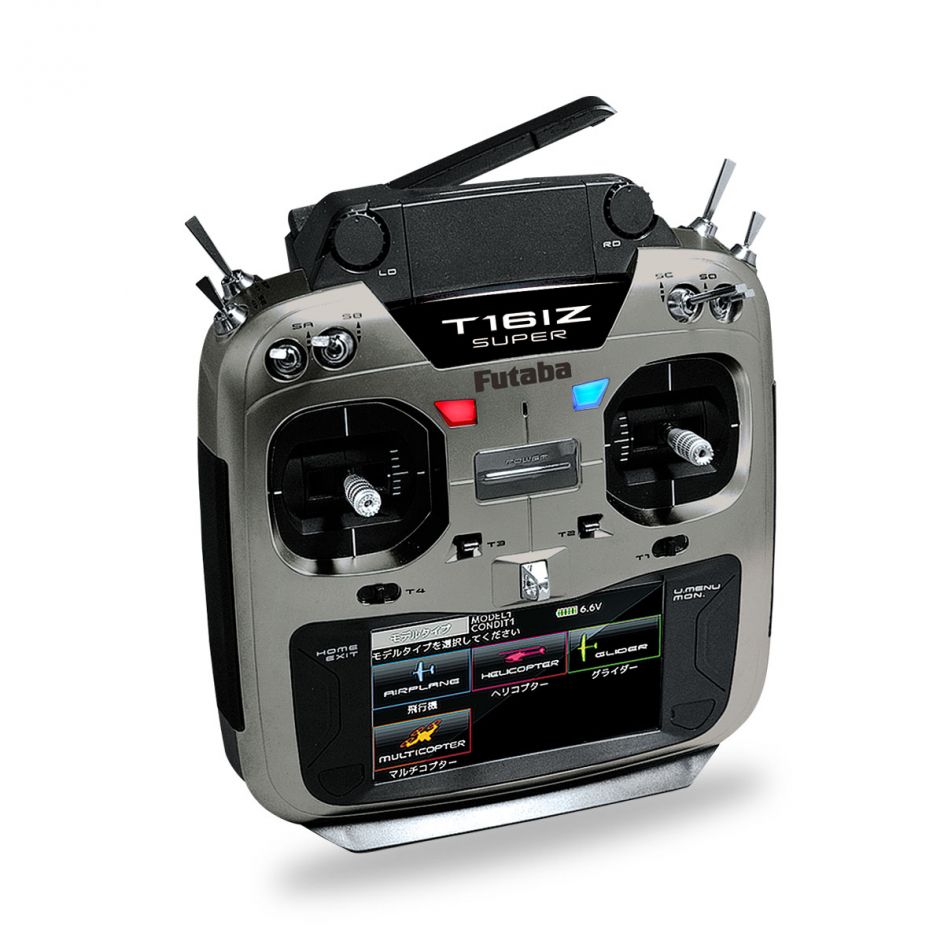

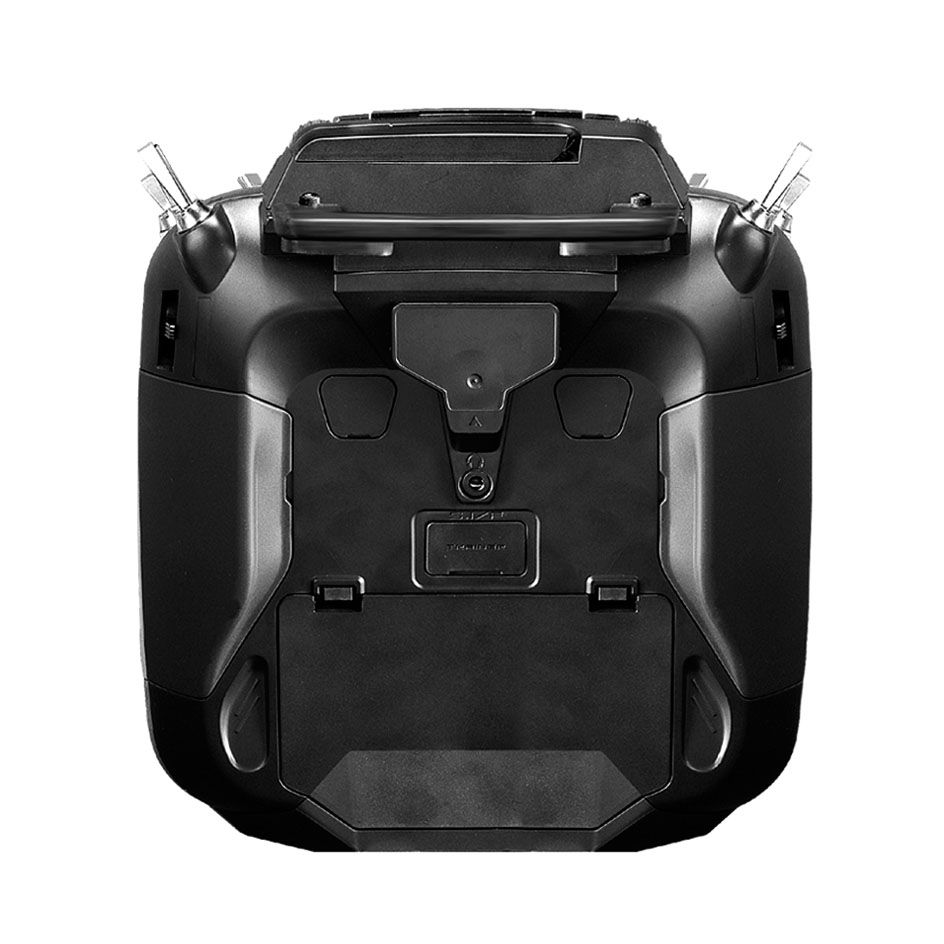

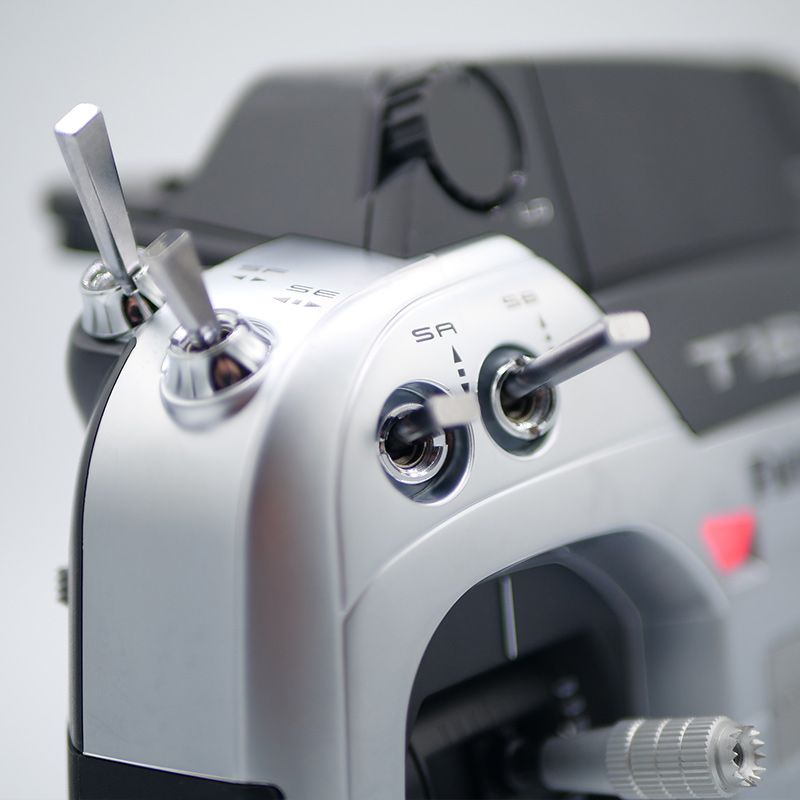

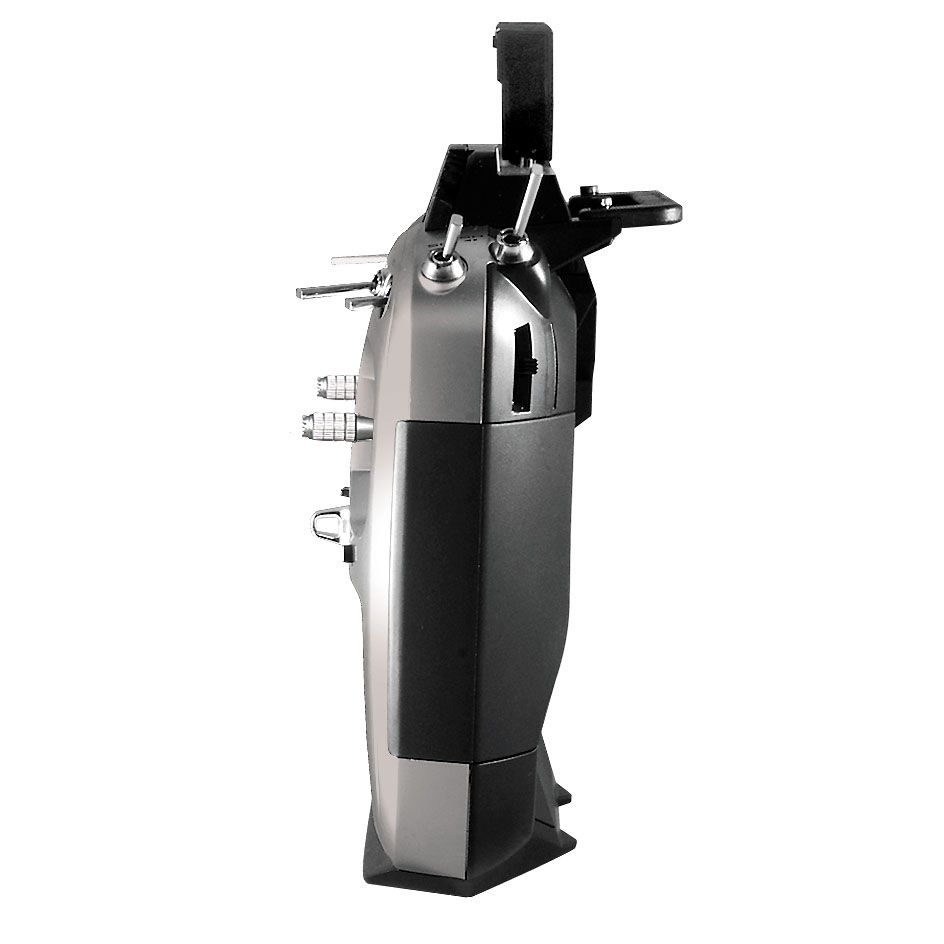

New 18-channel FUTABA remote control (16 channels plus 2 on / off).

This remote control has all the latest advances in gyro programming and adjustment.

The transmitter mode can be changed without opening the radio (mode 1/2/3 or 4), just screw or unscrew a screw for the mechanical part, then choose the type of mode on the programming.

The transmitter has a USB (Type C) socket.

Power is supplied by a new Futaba 7.4V 2000mAh battery with integrated charging socket (USB type).

More Information

Manufacturer Futaba

Radio chanels: 16

Frequency band: 2,4 Ghz

Telemetry: Yes

Modulation:

Futaba FASSTest Air, Futaba S-FHSS Air, Futaba T-FHSS Air

Application: Airplanes, Boats, Drones, Elicopters

Mode 1 (throttle right - aileron right), 2 (throttle left - aileron right), 3 (throttle right - aileron left), 4 (throttle left - aileron left)

SYSTEM
Modulation FASSTest, T-FHSS, S-FHSS
Channel (Liner CH + Digital CH) 16 + 2
Internal Model Memory 30
External Model Memory No
Model Data Copy SD Card (SDHC is available.)
Conventional Frequency Synthesizer System No (Dedicated 2.4GHz)
2.4GHz Module No (Dedicated 2.4GHz)
Model ID Yes
Telemetry System Yes
Voice Message Yes
Software Update Yes (Through SD card)
Stick Calibration Yes
Stick Mode 1-4
Multi language Yes (9 languages)
HARDWARE
LCD 4.3 inches 480 x 272 pixels Color TFT-LCD
LED 2 (Red x 1, Blue x 1)
Touch Screen / Touch Sensor Touch Screen
Front Dial 2
Rotary Encoder with push switch No
Side Lever 2
Trim Lever 4
Toggle Switch 8
Stick Swich No
Edit Dial No
Edit Key 2
Cross Key (Cursor Key) No
Battery LT2F2000B （Li-polymer 7.4V/2000mAh) with internal USB charger
Antenna Angle Adjustment Yes (90 degree and 3 step turnable)
Speaker Yes
Earphone Jack Yes
USB Yes (Type-C connector) for Filight simulators
Calender Clock No
S.BUS I/F Yes (with Power Supply)
Trainer PPM 8CH / PPM 12CH / S.BUS (16CH)
Trainer S.BUS port No
DSC No
Adjustable angle lever stick No
Selectable stick mode Yes
Microphone No
Vibrator Yes
BASIC
User Name 15 characters
Model Name 15 characters
Condition Name Yes
Function Setting Yes
Function Rename Yes (AUX function only)
Sub Trim ±240 steps
Servo Reverse Yes
F/S Yes
Battery F/S All CH (FASSTest, T-FHSS, S-FHSS)
EPA 30 - 140％ （with Limit setting）
Servo Speed Yes
Trim Setting Step, Rate, Mode
Flight Condition Full Condition
(Maximum 8 conditions)
AFR（D/R） Yes
AFR Curve Mode 3 types
AFR Curve Point Number Maximum 17 points
Programable Mixing 10 circuits per condition
Throttle Cut Yes
Idle down Yes
Logic switch Yes (Condition & DG swich only)
Data editor for S.BUS equipments Yes (S.BUS Sx, CGY760R)
Audio Player No
Sound Player No
User Menu Yes
Servo Monitor Yes (with NT and Moving Test)
Mixing Monitor No
Up/Down Timer 2
Integral Timer (System Timer) Yes
Model Timer Yes
Stick Alarm Yes
Quick Model Select No
PLANE
Wing Type 13
Tail Type 3
Rudder Type 2
Flap Setting Yes
AILE Differential Yes
AILE to Camber FLAP Mix Yes
AILE to Brake FLAP Mix Yes
AILE to RUD Mix Yes
AIRBRAKE to ELEV Mix Yes
RUDD to AILE Mix Yes
RUDD to ELEV Mix Yes
Camber Mix Yes
ELEV to Camber Mix Yes
Camber FLAP to ELEV Mix Yes
Snap Roll Yes
Airbrake Mix Yes
V Tail Yes
Ailvator Yes
Winglet Yes
FLAPEROM Mix No (use Camber Mix)
ELEVON Mix No (use Camber Mix)
Motor Mix Yes
Fuel Mixture No
Multi Engine Yes
Gyro Sense Yes
THR Curve Avalable (use AFR)
PIT Curve Avalable (use AFR)
THR Hold No
Balance No
HELICOPTER
Swash Type 8
(H-1, H-2, H-3, HR3, HN3, HE3, H-4, H4X)
PIT / THR Curve Yes
PIT / THR Curve Mode 3
PIT / THR Curve Point Number Maximum 17 points
Acceleration Yes
Throttle Hold Yes
Swash Mixing Yes
Throttle Mixing Yes
PIT to NEEDLE Mixing Yes
PIT to RUD Mixing Yes
Fuel Mixture No
Gyro Sense Yes (3 axis is available)
Governor Yes
Condition Hold Yes
Hovering Pitch Yes
High / Low Pitch Yes
Hovering Throttle Yes
Swash AFR Yes
Swash Setting Yes (Mixing Rate, Linkage Compensation, Speed Compensation)
Swash Ring Yes
Throttle Limiter Yes
Gyro setting Yes
GlIDER
Wing Type 13
Tail Type 3
Rudder Type 2
Flap Setting Yes
AILE Differential Yes
AILE to Camber FLAP Mix Yes
AILE to Brake FLAP Mix Yes
AILE to RUD Mix Yes
RUDD to AILE Mix Yes
AIRBRAKE to ELEV Mix Yes
Camber Mix Yes
ELEV to Camber Mix Yes
Camber FLAP to ELEV Mix Yes
Butterfly Mixing Yes
Butterfly to ELEV Yes (ELEV rate in Butterly Mix)
Trim Mix 1 Yes
Trim Mix 2 Yes
V Tail Yes
Ailvator Yes
Winglet Yes
FLAPEROM Mix No (use Camber Mix)
ELEVON Mix No (use Camber Mix)
Motor Mix Yes
Balance No
TELEMETRY
Receiver Battery Yes
Temperature Sensor Yes
RPM Sensor (Magnetic, Optic, BLS) Yes
Altitude Sensor Yes (with Vario)
GPS Sensor Yes (included Altitude Sensor)
Voltage Sensor Yes
Current Sensor Yes
Servo Sensor Yes
ROXXY ESC No
Air Speed Yes
Kontronik ESC Yes
Castle TL0 Yes
JetCat V10 Yes
PowerBox Yes
O.S. EM-100 Yes
Voice Yes (English, German, Japanese, French)

Data Logging Yes

NOT COMPATIBLE WITH THE FASST TRANSMISSION PROTOCOL
