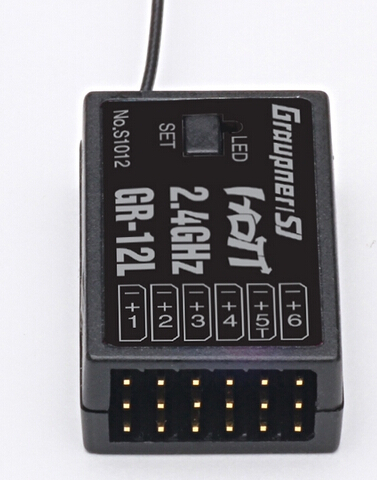

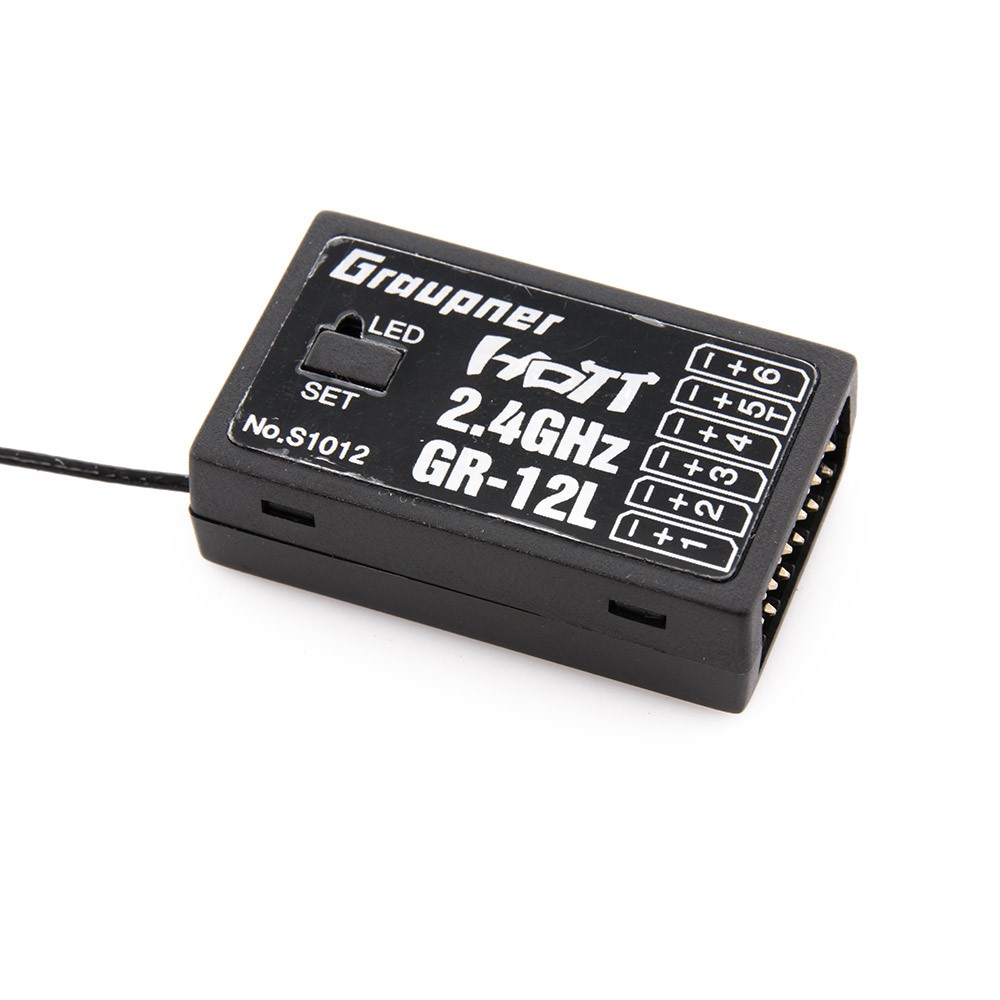

The GR-12L receiver can control up to 6 servos
With GRAUPNER HoTT 2.4 GHz technology, the receiver has a new hopping telemetry transmission high-frequency unit with state-of-the-art components and the latest software. Parameters for receiver supply voltage, receiver temperature and signal strength are transmitted without any additional sensors.
Specification
Width [mm]: 21 mm
Height [mm]: 10 mm
Temperature range [°C] : -15 ... +70 °C
Aerial length [mm]: 1 x Wire 145 (Antenna 30) mm
All-up weight [g]: 7 g
Frequency : 2400 ... 2483.5 MHz
Range approx. [m] : 2000 m
Overall length [mm]: 36 mm
Dimensions [LxWxH in mm]: 36 x 21 x 10 mm
Modulation: 2.4 GHz FHSS
Current consumption [mA]: 70 mA
Operating voltage neutral [V] : (2,5) 3,6 ... 8,4 V
Channels: 6
Number of antennas: 1
