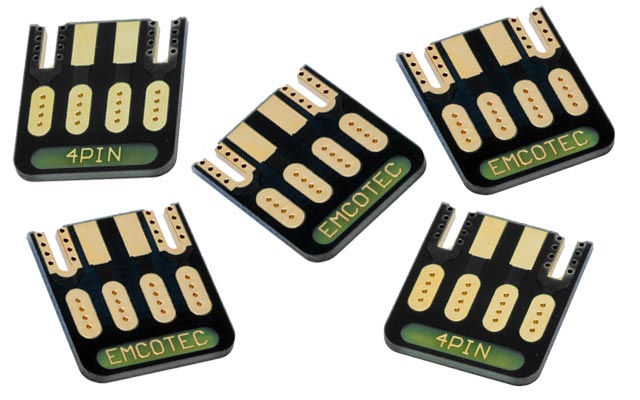

EMC board, 5 pcs.

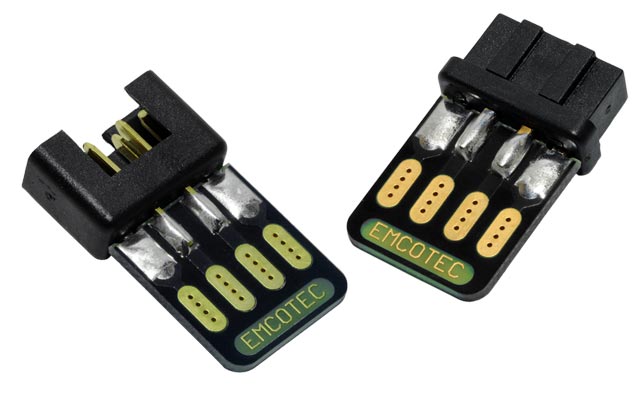

Adapter board that allows direct soldering of the EMC plugs/sockets (MPX compatible with double contacts). The individual cables (e.g. servo cables) can then simply be soldered onto the large solder pads.

For insulation, a suitable shrink tubing (item no. A84025). Particularly suitable for the production of servo supplies for surface connectors.

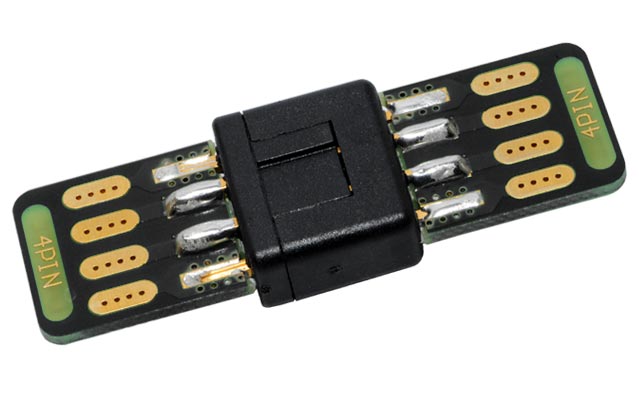

In conjunction with the information contained in the EMC connector sets (item no. A85022 or A85023) even eliminates the need for bonding to the housings, as the board firmly fixes the high-current connector in the housing by soldering. The two middle pins (usually plus and minus) are merged in the 4-pin variant on the board. The middle pins of the 6-pin variant are not merged.

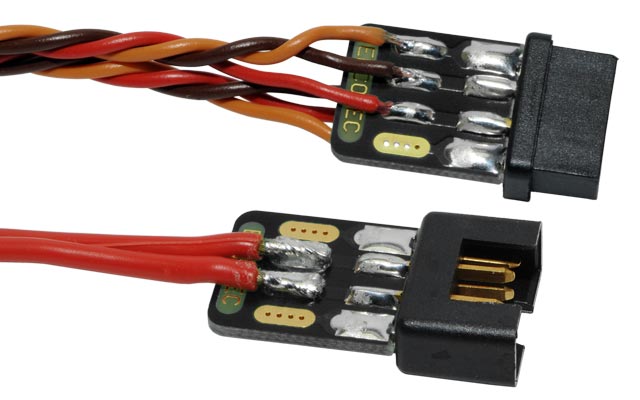

This means that a total of 4 (4-pin variant) or 6 (6-pin variant) electrically separated contacts are routed to the 8 solder pads. This allows servo cables to be soldered to the top and bottom of the board without any problems. Suitable for the EMC connectors, this board is 1.2mm thick (also suitable for original MPX).

This article is available in different variants. Please select the desired variant.
